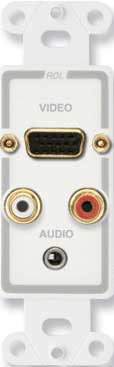

Radio Design Labs D-AVM4
Decora Audio/Video Monitor Jack Panel

OUR PART #  D-AVM4

Our Price: $38.23
List Price: $51.13
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Radio Design Labs' D-AVM4 is a great choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors.  The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.

The front panel features a pass-through video monitor connector.  Video connections are made on the front and rear panel using a standard dB15 video connector.

The front panel features 2 gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources.  An input signal may be connected to either the phono jacks or to the mini-jack.  The left and right signal inputs are fed to a rear-panel detachable terminal block.  The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.

Features:

  • Stereo Audio Inputs to Stereo Audio Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced Output on Detachable Terminal Block
  • Video Monitor Pass-Through Panel Connector

Typical Performance:

  • Audio input connectors (3): RCA jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
  • Video input connector: Female DB15
  • Audio output connector: Detachable terminal block (Left and Right unbalanced audio)
  • Video output connector: Female DB15 (pass-through from front panel)
  • Dimensions:
    Height: 4.13 in. (10.49 cm)
    Width: 1.3 in. (3.3 cm)
    Depth: 1.8 in. (4.57 cm)
  • Mounting Box Minimum Depth: 0.15 in. (0.38 cm) plus the depth of the installer-provided video connector

Radio Design Labs D-AVM4
Decora Audio/Video Monitor Jack Panel

OUR PART #  D-AVM4

Product Information:

Radio Design Labs' D-AVM4 is a great choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors.  The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.

The front panel features a pass-through video monitor connector.  Video connections are made on the front and rear panel using a standard dB15 video connector.

The front panel features 2 gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources.  An input signal may be connected to either the phono jacks or to the mini-jack.  The left and right signal inputs are fed to a rear-panel detachable terminal block.  The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.

Features:

  • Stereo Audio Inputs to Stereo Audio Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced Output on Detachable Terminal Block
  • Video Monitor Pass-Through Panel Connector

Typical Performance:

  • Audio input connectors (3): RCA jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
  • Video input connector: Female DB15
  • Audio output connector: Detachable terminal block (Left and Right unbalanced audio)
  • Video output connector: Female DB15 (pass-through from front panel)
  • Dimensions:
    Height: 4.13 in. (10.49 cm)
    Width: 1.3 in. (3.3 cm)
    Depth: 1.8 in. (4.57 cm)
  • Mounting Box Minimum Depth: 0.15 in. (0.38 cm) plus the depth of the installer-provided video connector
