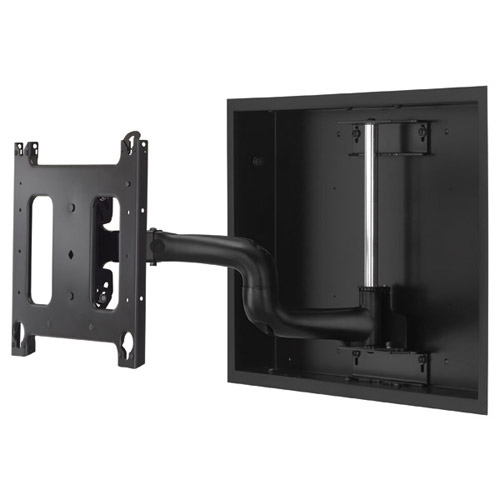

Chief PWRIWUB In-Wall Mount with PSBUB

An in-wall swing arm designed to create a low-profile installation.

Features:

• Ships fully assembled to save on installation time
• Must order PAC501B In-Wall Accessory
• Easily installs into PAC501B to create an ultra low profile installation
• Extends over 22" (569 mm) for viewing from any angle
• Note: Must order interface bracket and PAC501B In-Wall Accessory separately

Specifications:

• Certifications: UL Listed
• Color: Black
• Maximum Extension: 22" (558.8mm)
• Minimum Depth: 0.5" (12.7mm)
• Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
• Orientation: Landscape, Portrait
• Overall Dimensions (H x W x D): 20.0" x 30.0" x 4.5" (508 x 762 x 114mm)
• Post-Installation Leveling (Roll): Yes
• Solution Type: Universal
• Tilt: + 2° , - 15°
• Typical Screen Sizes: 37 - 55"
• Wall Stud Compatibility (inches): 16
• Weight Capacity: 125 lbs (56.7kg)
• Note: Requires PAC501B. PACHFK1 available. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")
