Sennheiser 2000H2-204BK
Dual Channel Handheld Wireless Mic System, w/KK204 Capsules, Black

OUR PART #  2000H2-204BK

Call for price! Not available online.
List Price: $7,499.00

Select model: (shipping times are approximate)

The 2000 series wireless microphone systems are targeted primarily at rental houses and mid-level theatre and broadcast applications.  The 2000H2-204BK is a dual channel system with: (2) SKM 2000XP handheld transmitters, (2) KK 204 cardioid capsules and (1) EM 2050 dual-channel receiver. The system allows for simultaneous operation of the included transmitters and yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets.

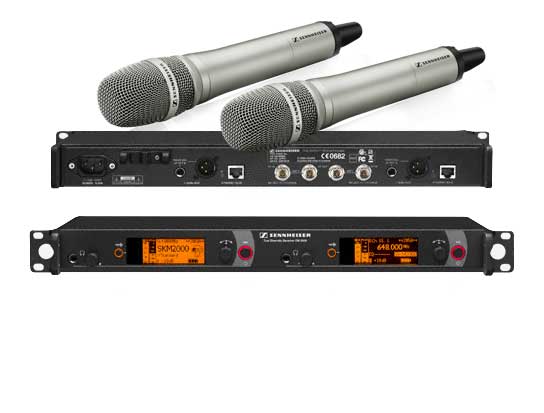

NOTE: Image is for illustrative purposes.  Actual item color is black.  See image 2 for capsule depiction.

SKM 2000XP

The hand-held transmitter of the 2000 series shows its strength: during use, in its performance, in its features. Sennheiser's technical know-how is shown through its switchable transmission power, intuitive menu navigation, an easy-to-read graphic display and external charging contacts for charging the optional rechargeable batteries directly. SKM 2000 is compatible with all ew capsules, including the MMK 965-1 true condenser capsule, whose wired version, e 965, has already proven to be a great success.

KK204 Cardioid Capsule

The KK204 is the capsule of the KMS 104 vocal microphone, exclusively for use with the Sennheiser SKM 2000 wireless system. The capsule head provides the best possible suppression of sound originating from 180° to the rear. These new capsules from Neumann provide natural warmth with no exaggerated bass boost, and are a perfect complement to the powerful, reliable 2000 Series.

  • Reduced handling noise – very low sensitivity to handling noise with a steep roll-off from approximately 78 Hz
  • Reduced plosives (‘p’ popping) and sibilance (harsh ‘s’ sounds) – both capsules feature a foam lined grille to ensure smooth sound
  • Wide dynamic range with high SPL capability – 126 dB-A of dynamic range with 150 dB MAX SPL
  • Low feedback – Incredibly smooth and flat frequency response provided high gain before feedback

EM 2050

Equipped with the same features as EM 2000 but designed as a twin receiver, EM 2050 makes it possible for the RF signal to be looped through with the help of an integrated active splitter. With this design, you can set up systems with up to 16 channels without using external splitters. An integrated equalizer and guitar tuning device complete the package.



  • Rugged 19" all-metal housing with integrated power supply unit
  • Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • True diversity technology for best reception quality
  • Integrated antenna splitter for cascading up to 8 devices without using additional splitters
  • Pilot tone squelch for interference-free operation
  • Scan feature within the channel band system
  • Continuous scanning together with Sennheiser’s Wireless Systems Manager
  • Frequency setting in 25 kHz steps
  • Squelch setting always visible on the display
  • Antenna cables for active antenna supply
  • Transformer-balanced audio outputs
  • HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
  • Ethernet for connecting to a PC
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Transmitters can be configured from the receiver menu
  • Transmitters can be synchronized over the infrared interface
  • 4 selectable equalizer presets
  • Soundcheck mode for monitoring transmission conditions
  • Adjustable headphone connection


  • Rugged metal housing
  • Up to 75 MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • Frequency setting in 25 kHz steps
  • Pilot tone squelch for interference-free operation
  • External charging contacts for recharging battery BA 2015 in the transmitter
  • Backlit display on transmitter (keystroke activation)
  • Auto-lock feature to prevent buttons from accidently being pressed
  • Audio and RF MUTE feature for muting the transmitter
  • Transmitters can be configured from the receiver menu
  • Possible to synchronize with the receiver using infrared interface
  • Wide range of accessories for virtually any use



  • RF frequency range  516 - 865 MHz
  • Carrier frequency  max. 3,000
  • Presets  max. 64
  • Switching bandwidth  max. 75 MHz
  • Peak deviation  ± 48 kHz
  • Squelch  off, 5 - 25 dBµV can be set in 2 dB steps
  • Intermodulation spacing  = 75 dB
  • Antenna connector  2 BNC (50O)
  • Cascadable  2 BNC (50O)
  • Gain  0 dB ±0.5 dB based on antenna inputs
  • Compander  HDX
  • Frequency response  25 - 18,000 Hz
  • Signal-to-noise-ratio  > 120 dB(A)
  • Total harmonic distortion (THD)  < 0.9%
  • XLR connector  2 x XLR-3 + 2 x 6.3 mm jack
  • Audio output level (balanced)  +18 dBu max Setting range: 49 dB in 1 dB steps + 6 dB gain reserve
  • Booster  12 V DC, 2 x 200 mA Short-circuit proof
  • Operating temperature  -10 °C - + 55 °C
  • Power supply  100 - 240 V AC, 50/60 Hz
  • Current consumption  max 0.25 A
  • Dimensions:  19.01 x 8.54 x 1.69" (483 x 217 x 43mm)
  • Weight:  6.39 lb (2.9 kg)


  • Modulation:  FM
  • Carrier Frequency:  Max. 3,000
  • Presets:  Max. 64
  • Bandwidth:  Max. 75Hz
  • Signal-to-Noise Ratio:  = 120 dBA (@ 1mV peak deviation)
  • Frequency Response:  80Hz - 18kHz
  • Audio Output Power:  Selectable from 10, 30, 50, or 100 mW
  • Compander:  HDX
  • Deviation:  Nominal: ±24 kHz // Peak: ± 48 kHz
  • Operating Voltage:  2 x 1.5 V (AA) 8 Hours
  • Dimensions:  1.96 x 10.43" (50 x 265mm)
  • Weight:  0.99 lb (450g)
