Coleman Cable 23226-250 250 ft 16AWG 2 Conductor Power / Control Cable

OUR PART #: 23226-250 MFR #: 55049503

Copied to clipboard

This is a 250 ft segment 2-conductor 16AWG cable, commonly used for power and control applications. ...Read more

Coleman Cable 23226-250 250 Ft 16AWG 2 Conductor Power / Control Cable Image 1
Coleman Cable 23226-250 250 Ft 16AWG 2 Conductor Power / Control Cable

Call for price! Not available online.

Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

This is a 250 ft segment 2-conductor 16AWG cable, commonly used for power and control applications.

Applications:

  • Portable industrial machinery and compressors
  • Conveyor and automated production equipment
  • Indoor and outdoor temporary power uses

Features:

  • Excellent abrasion, ozone, sunlight, chemical and oilresistance, and water resistant with high degree of flexibility
  • Non-wicking lightweight polypropylene fillers
  • Suitable and approved for submersion in water

Specifications:

  • Conductors:
    • 18 AWG – 10 AWG fully annealed strandedbare copper
    • Class K stranding per ASTM B 174
  • Insulation:
    • T*prene® Oil resistant ThermoplasticElastomer (TPE)
    • Brilliant colors for easy identification
  • Jacket: Water, sunlight, and oil resistant,flame-retardant Black Seoprene® Thermoplastic Elastomer (TPE)
  • Legend:
    • CCI SEOPRENE 105C XX AWG (X.XX MM2) X/CSJEOOW
    • E54864 (UL) 300V -50C TO 105C -- CSA LL39573SJTOOW
    • (TPE) -50C TO 105C FT2 WATER RESISTANTP-241-3-MSHA
  • Industry Approvals:
    • UL Standard 62
    • NEC 501.140 Class I Div. 2
    • CSA 22. 2 No. 49
    • MSHA
    • NEC Article 400
    • Federal Spec #JC580
    • RoHS

NOTE:

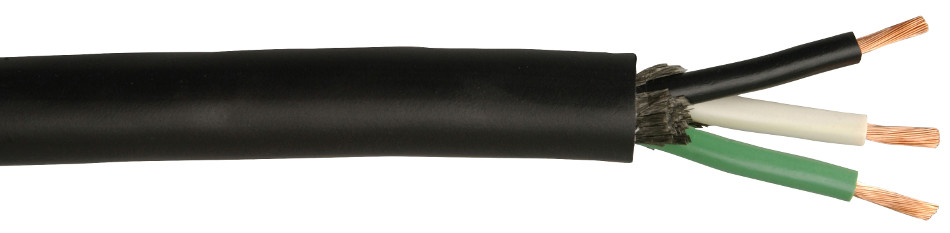

Image shown above is for illustrative purposes only; actual product is a 2-Conductor cable. Contact your Sales Representative for more information on this and other products.
