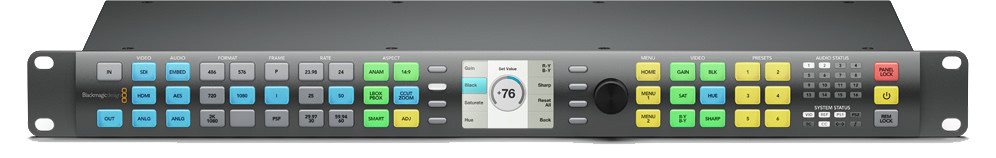

Blackmagic Design Teranex 3D Processor
Video Standards Converter with Dual-Stream 3D and 4:4:4 Format and Frame Rate Conversion

OUR PART #:  TERANEX-3D-PROCESSOR

With the Blackmagic Design Teranex 3D Processor, you'll get all the connections, processing...
Learn More
Our Price: $3,795.25
List Price: $3,995.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design Teranex 3D Processor
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

With the Blackmagic Design Teranex 3D Processor, you'll get all the connections, processing, and quality of the Teranex 2D model, but with added dual link SD/HD and 3 Gb/s SDI and HDMI 3D inputs and outputs for dual stream 3D conversions and Dual Link 4:4:4 quality conversions. Get the same amazing processing features plus 3D features such as 3D dual stream processing, conversion between 3D formats, patent pending 3D simulation and 3D camera rig alignment!

The Teranex 3D processor lets you connect both left and right eye feeds and perform high quality de- interlacing, up conversion, down conversion, SD and HD cross/standards conversion, automatic cadence detection, removal and correction, even adjustable scaling and aspect ratio conversion on both eye channels at the same time! When capturing via a Thunderbolt port you get support for capture and playback of two independent video files for each eye, as well as full support for 3D capable NLE software!

Blackmagic Design Teranex 3D Processor Features:

  • Move between hundreds of video formats instantly
  • Use anywhere
  • Teranex quality
  • Advanced processing power
  • More connections
  • Teranex processing
  • Dual Stream 3D
  • Convert and capture
  • Includes UltraScope
  • high quality de-interlace
  • Up conversion
  • Down conversion
  • SD/HD cross conversion
  • SD/HD standards conversion
  • Cadence detect and remove
  • Noise reduction
  • Adjustable scaling
  • Aspect ratio conversion
  • Audio, timecode, and subtitle support
  • Dual Channel 3D and 4:4:4
  • Advanced 3D tools
  • 3D processing
  • 3D conversions
  • 3D simulation
  • 3D camera align

Blackmagic Design Teranex 3D Processor Specifications:

Connections

  • SDI Video Input:
    • 2 x 10-bit SD, HD, 3Gb/s HD and 2K switchable
    • Usable as dual link HD-SDI for 4:2:2 or 4:4:4 connection or 3 Gb/s for HD-SDI 4:4:4 or 2K
    • Also usable for dual stream 3D HD-SDI
  • SDI Video Loop: 2 x reclocked 10-bit SD, HD, 3Gb/s HD and 2K switchable.
  • SDI Video Output:
    • 2 x 10-bit SD, HD, 3Gb/s HD and 2K switchable
    • Usable as dual link HD-SDI for 4:2:2 or4:4:4 connection or 3 Gb/s for HD-SDI 4:4:4 or 2K
    • Also usable for dual stream 3D HD-SDI
  • Analog Video Input:
    • 1 x Component YUV on 3BNCs switchable to Composite
    • Component supports HD and SD
  • Analog Video Output:
    • 1 x Component YUV on 3 BNCs switchable to Composite
    • Component supports HD and SD
  • HDMI Video Input: 1 x HDMI type A connector including 3D frame packing support
  • HDMI Video Output: 1 x HDMI type A connectorincluding 3D frame packing support
  • Analog Audio Input:
    • 2x XLR - 2 channels balanced analog audio input (XLRs are shared with AES/EBU audio input). 2x RCA connectors support input of unbalanced analog audio for consumer equipment
  • Analog Audio Output:
    • 2x XLR - 2 channels balanced analog audio output (XLRs are shared with AES/EBU audio output)
  • AES/EBU Audio Input:
    • 2 x XLR - 2 pairs (4 channels) professional 110O balanced digital audio input (XLRs are shared with analog inputs)
  • AES/EBU Audio Output:
    • 2 x XLR - 2 pairs (4 channels) professional 110O balanced digital audio output (XLRs are shared with analog outputs)
  • SDI Audio Input: 16 channels in SD, HD and 2K.(16 channels in HD and 2K, and 8 channels in SD for capture via Thunderbolt port)
  • SDI Audio Output: 16 channels in SD, HD and 2K. (16 channels in HD and 2K, and 8 channels in SD for playback via Thunderbolt port)
  • HDMI Audio Input: 8 channels
  • HDMI Audio Output: 8 channels
  • Dolby Support Built-in: Dolby® E/AC-3 pass through with same frame rates
  • Dolby Support Optional: Dolby® E/AC-3 support in framerate conversions with the optional Dolby® E/AC-3 decode and encode modules.  Dolby metadata support using RS-485 on DB-9.
  • Multi-Rate Support:
    • SDI and component analog video connections are switchable between standard definition and high definition.
    • SDI switches between 270 Mb/s standard definition SDI, 1.5Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.
    • HDMI connections are switchable between standard definition, high definition and 3D high definition with frame packing.
  • Sync Input: Blackburst in SD or TriSync HD
  • Device Control: Sony™ compatible RS-422 deck control port. Serial ports TxRx direction-reversible under software control.
  • Computer Interface:
    • Thunderbolt port for capture and playback of video and audio
    • USB 2.0 mini B port for software updates and configuration
  • Processor Interface: Illuminated push-buttons, status LEDs and LCD with easy onscreen menus.
  • Power: 2 x built-in international AC power supplies with IEC C14 inlets for fail over redundancy. 120-240V, 50-60Hz.

Standards

    • SD Format Support:
      • 625/25 PAL
      • 525/29.97 NTSC
    • HD Format Support:
    • 720p50
    • 720p59.94
    • 1080PsF23.98
    • 1080p23.98
    • 1080PsF24
    • 1080p24
    • 1080PsF25
    • 1080p25
    • 1080PsF29.97
    • 1080p29.97
    • 1080i50
    • 1080p50
    • 1080i59.94
    • 1080p59.94
  • 2K Format Support:
    • 2048 x 1080PsF23.98
    • 2048 x 1080p23.98
    • 2048 x1080PsF24
    • 2048 x 1080p24
    • 2048 x1080PsF25
    • 2048 x 1080p25
    • 2048 x1080PsF29.97
    • 2048 x 1080p29.97
  • SDI Compliance:
    • SMPTE 259M
    • SMPTE292M
    • SMPTE 296M
    • SMPTE372M
    • SMPTE 425M
  • SDI Metadata Support:
    • VITC support
    • SMPTE 12M
    • Video indexing support, including:
      • WSS
      • RP186
      • AFD
      • SMPTE2016
    • Closed captioning support for conversions to and from 608 and 708, SMPTE 334M
    • Capture and playback via Thunderbolt port supports RP188, VANC using up to 3 lines of video in file including closed captioning
  • Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
  • Video Sampling: 4:2:2 and 4:4:4 SDI switchable
  • Color Precision: 10-bit
  • Color Space:
      -  REC 601
      -  REC 709
  • HD-SDI 3D Support:
    • Top and bottom
    • Side by side
    • Dual stream
  • HDMI Configuration: HDMI automatically configures to connected display
  • HDMI Resolution: Pixel for pixel HD resolution input to connected device
  • HDMI Color Precision: 4:2:2 10-bit
  • HDMI 3D Support:
    • Top and bottom
    • Side by side
    • Frame packing
  • SDI Format Support:
    • 525 NTSC
    • 625PAL
    • 720HD
    • 1080HD
    • 2K 2048 x 1080
  • Analog Format Support:
    • 525 NTSC
    • 625 PAL
    • 720HD
    • 1080HD
  • Analog Component:
    • NTSC/PAL 10-bit and 16x over-sampled output
    • HD 10-bit and 4x over-sampled output
  • Analog Composite: NTSC/ PAL 10-bit and 16x over-sampled output
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

  • Colorspace conversion: Hardware based real time
  • Format Conversion: Real time up conversion, down conversion, cross conversion and SD/HD standards conversion on both capture and playback. All conversions are also available on 3D formats.
  • Aspect Ratio Conversion: Real time variable and fixed aspect ratio conversion including proprietary “SMART” aspect.
  • Real Time Video Processing: Includes noise reduction, cadence detection with insertion/removal and cadence correction, scene cut detection, color correction, and proc amp control.
  • Real Time 3D Processing: 3Dsynchronization, Patent pending 2D to 3D simulation, and 3D camera align.
  • Real Time Effects during playback on a computer withThunderbolt™ technology:
    • Apple Final Cut Pro™ internal effects
    • Adobe® Premiere Pro® Mercury Playback Engine effects
    • Avid Media Composer 6™ internal effects
  • Software Included:
    • Desktop Video software installs:
      • MediaExpress
      • Disk Speed Test
      • LiveKey
      • Blackmagic system preferences
      • Blackmagic driver for video capture and playback via the converter’s Thunderbolt port
    • Blackmagic UltraScope software for waveform monitoring from the converter’s Thunderbolt port
  • Installation: Connected via a Thunderbolt cable (not included) to computers with Thunderbolt technology for video capture and playback

Extras

  • Software Control: Software control utility included free for changing settings via Windows 7 and Mac OS X
  • Internal Software Upgrade: Automatically upgrades when new software is connected via USB 2.0
  • Physical Installation: 1 rack unit size. Less than 8 inches deep
  • Product Warranty: 12 month limited manufacturer's warranty
