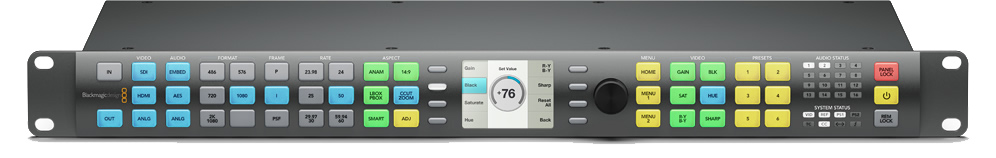

Blackmagic Design Teranex 2D Processor
Video Standards Converter

OUR PART #:  TERANEX-2D-PROCESSOR

The Blackmagic Design Teranex 2D Processor is perfect for regular conversions as well as capture and playback.
Learn More
Our Price: $1,895.25
List Price: $1,995.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design Teranex 2D Processor
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blackmagic Design Teranex 2D Processor is perfect for regular conversions as well as capture and playback. Get SD/HD and 3 Gb/s SDI, HDMI and analog in and out, 8 channel AES/EBU, 4 channel balanced analog input and output as well as consumer HiFi audio input connections. Thunderbolt port for computer capture and playback, RS-422 deck control, reference input, and ethernet are included for remote configuration.

Get amazing processing with high quality de-interlacing, up conversion, down conversion, SD and HD cross/standards conversion, automatic cadence detection, removal and correction even with edited content, noise reduction, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.

Blackmagic Design Teranex 2D Processor Features:

  • Move between hundreds of video formats instantly
  • Use anywhere
  • Teranex quality
  • Advanced processing power
  • More connections
  • Teranex processing
  • Convert and capture
  • Includes UltraScope
  • high quality de-interlace
  • Up conversion
  • Down conversion
  • SD/HD cross conversion
  • SD/HD standards conversion
  • Cadence detect and remove
  • Noise reduction
  • Adjustable scaling
  • Aspect ratio conversion
  • Audio, timecode, and subtitle support

Blackmagic Design Teranex 2D Processor Specifications:

Connections

  • SDI Video Input: 1 x 10-bit SD, HD, 3Gb/s HD and 2K switchable
  • SDI Video Loop: 1 x reclocked 10-bit SD, HD, 3Gb/s HD and 2K switchable.
  • SDI Video Output: 2 x 10-bit SD, HD, 3Gb/s HD and 2K switchable.
  • Analog Video Input:
    • 1 x Component YUV on 3BNCs switchable to Composite
    • Component supports HD and SD
  • Analog Video Output:
    • 1 x Component YUV on 3 BNCs switchable to Composite
    • Component supports HD and SD
  • HDMI Video Input: 1 x HDMI type A connector
  • HDMI Video Output: 1 x HDMI type A connector
  • Analog Audio Input:
    • 4 x inputs of professional balanced analog audio on DB-25 for 4 audio channels. Pinout compatible with Yamaha™, Mackie™, Sony™, and Apogee™ connectors.
    • 2 x inputs of unbalanced analog audio on RCA connectors for consumer equipment
  • Analog Audio Output: 4 x outputs of professional balanced analog audio on DB-25 for 4 audio channels. Pinout compatible with Yamaha™, Mackie™, Sony™, and Apogee™ connectors
  • AES/EBU Audio Input: 8 x inputs on DB-25 for 8 audio channels. Sample rate converted. Pinout compatible with Yamaha™, Mackie™, Sony™, and Apogee™ connectors
  • AES/EBU Audio Output: 8 x outputs on DB-25 for 8 audio channels. Pinout compatible with Yamaha™, Mackie™, Sony™, and Apogee™ connectors
  • SDI Audio Input: 16 channels in SD, HD and 2K. (16 channels in HD and 2K, and 8 channels in SD for capture via Thunderbolt port)
  • SDI Audio Output: 16 channels in SD, HD and 2K.(16 channels in HD and 2K, and 8 channels in SD for playback via Thunderbolt port)
  • HDMI Audio Input: 8 Channels
  • HDMI Audio Output: 8 Channels
  • Dolby Support Built-In: Dolby® E/AC-3 pass through with same frame rates
  • Dolby Support Optional: None
  • Multi Rate Support:
    • SDI, HDMI and component analog video connections are switchable between standard definition and high definition
    • SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI
  • Sync Input: Blackburst in SD or TriSync HD
  • Device Control: Sony™ compatible RS-422 deck control port. Serial ports TxRx direction-reversible under software control
  • Computer Interface:
    • Thunderbolt port for capture and playback of video and audio
    • USB 2.0 mini B port for software updates and configuration
  • Processor Interface: Illuminated push-buttons, status LEDs and LCD with easy onscreen menus.
  • Power:
    • 1 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.
    • 1 x 12V DC military grade port can be used for external battery power and/or fail over redundancy with optional “brick” DC adapter.

Standards

  • SD Format Support:
    • 625/25 PAL
    • 525/29.97 NTSC
    • 525/23.98 NTSC
  • HD Format Support:
    • 720p50
    • 720p59.94
    • 1080PsF23.98
    • 1080p23.98
    • 1080PsF24
    • 1080p24
    • 1080PsF25
    • 1080p25
    • 1080PsF29.97
    • 1080p29.97
    • 1080i50
    • 1080p50
    • 1080i59.94
    • 1080p59.94
  • 2K Format Support:
    • 2048 x 1080PsF23.98
    • 2048 x 1080p23.98
    • 2048 x1080PsF24
    • 2048 x 1080p24
  • SDI Compliance:
    • SMPTE 259M
    • SMPTE 292M
    • SMPTE 296M
    • SMPTE 372M
    • SMPTE 425M
  • SDI Metadata Support:
    • VITC support
    • SMPTE 12M
    • Video indexing support including WSS, RP186 and AFD, SMPTE 2016.
    • Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.(Capture and playback via Thunderbolt port supports RP188, VANC using up to 3 lines of video in file including closed captioning.)
  • Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
  • Video Sampling: 4:2:2 SDI
  • Color Precision: 10-bit
  • Color Space:
    • REC 601
    • REC 709
  • HD-SDI 3D Support: None
  • HDMI Configuration: HDMI automatically configures to connected display.
  • HDMI Resolution: Pixel for pixel HD resolution input to connected device.
  • HDMI Color Precision: 4:2:2 10-bit
  • HDMI 3D Support: None
  • SDI Format Support:
    • 525 NTSC
    • 625 PAL
    • 720HD
    • 1080HD
    • 2K 2048 x 1080
  • Analog Format Support:
    • 525 NTSC
    • 625 PAL
    • 720HD
    • 1080HD
  • Analog Component:
    • NTSC/PAL 10-bit and 16x over-sampled output
    • HD10-bit and 4x over-sampled output
  • Analog Composite: NTSC/PAL 10-bit and 16x over-sampled output
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

  • Colorspace Conversion: hardware based real time
  • Format Conversion: Real time up conversion, down conversion, cross conversion and SD/HD standards conversion on both capture and playback.
  • Aspect Ratio Conversion: Real time variable and fixed aspect ratio conversion including proprietary “SMART” aspect.
  • Real Time Video Processing: Includes noise reduction, cadence detection with insertion/removal and cadence correction, scene cut detection, color correction, and proc amp control.
  • Real Time 3D Processing: None
  • Real Time Effects during playback on a computer with Thunderbolt™ technology:
    • Apple Final Cut Pro™ internal effects
    • Adobe® Premiere Pro® Mercury Playback Engine effects
    • Avid Media Composer 6™ internal effects

Blackmagic Drivers Extra

  • Software Included:
    • Desktop Video software installs:
      • MediaExpress
      • Disk Speed Test
      • LiveKey
      • Blackmagic system preferences
      • Blackmagic driver for video capture and playback via the converter’s Thunderboltport
    • Blackmagic UltraScope software for waveform monitoring from the converter’s Thunderbolt port
  • Installation: Connected via a Thunderbolt cable (not included) to computers with Thunderbolt technology for video capture and playback.

Extras

  • Software Control: Software control utility included free for changing settings via Windows 7 and Mac OS X
  • Internal Software Upgrade: Automatically upgrades when new software is connected via USB 2.0.
  • Physical Installation: 1 rack unit size. Less than 6 inches deep.
  • Product Warranty: 12 Month Limited Manufacturer's Warranty.
