Crown XFMR8 8-Channel Transformer

OUR PART #: XFMR8 MFR #: NXFMR8CH

Copied to clipboard

The Crown XFMR-8 is a rack-mountable transformer that provides impedance matching between amplifier outputs and “constant voltage” loudspeakers. ...Read more

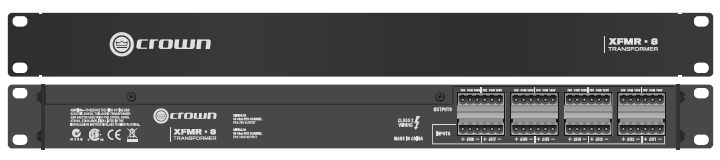

Crown XFMR8 8-Channel Transformer Image 1
Crown XFMR8 8-Channel Transformer
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Crown XFMR-8 is a rack-mountable transformer that provides impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70V or 100V output capability to drive distributed speaker systems designed to operate at those voltages.

Features

  • Eight channels of impedance matching for constant-voltage operation
  • Provides 70V and 100V output when used only with Com-Tech DriveCore™ Series (CT 475, CT 875, CT 4160, and CT 8150)
  • Allows amplifiers without direct constant-voltage capability to be easily integrated into distributed systems
  • "Jumper" cables are provided to easily integrate the XFMR unit with a Com-Tech DriveCore amplifier

Specifications

  • Output connectors: Pluggable barrier block connectors that accepts up to 14 AWG wire
  • Frequency Response: +/- 1.0 dB (70 Hz to 15 kHz)
  • Insertion (Core) Loss: < 1.0 dB max (70 VAC)
  • Max Input Levels: 32 Vrms / 125 W
  • Dimensions (W x H x D): 19" x 1.72" x 15.6" (48.3 x 4.4 x 39.7 cm)
  • Weight: 23.6 lbs. (10.7 kg)
