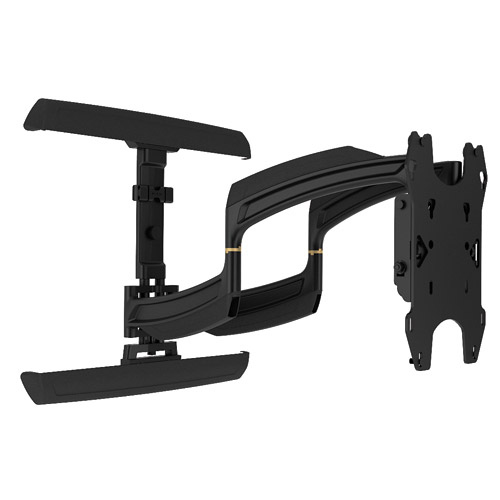

Chief Manufacturing TS325TU
Wall Mount, Thin Swing Arm

OUR PART #:  TS325TU

A lightweight, low-profile full-motion wall mount for TVs 30-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.
Learn More

Add to Cart to See Price

Be the first to review.
Chief Manufacturing TS325TU
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
A lightweight, low-profile full-motion wall mount for TVs 30-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.

Features:

  • Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
  • Extends up to 25” (635 mm) Full extension maximizes viewing potential.
  • Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
  • Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
  • Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
  • Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment.

Specifications:

  • Certifications:  UL Listed
  • Color:  Black
  • Lateral Shift:  16" (406.4mm)
  • Manual Height Adjustment:  1
  • Maximum Extension:  25.7" (652.8mm)
  • Maximum Screen Thickness:  5" (127mm)
  • Minimum Depth:  1.8" (46 mm)
  • Mounting Pattern Compatibility (Universal Versions):  100 x 100mm - 600 x 400mm
  • Orientation:  Landscape
  • Overall Dimensions (H x W x D):  17.2" x 29.5" x 1.8" (437 x 749 x 46mm)
  • Pivot (numerical value):  ±90° (depending on screen width)
  • Post-Installation Leveling (Roll):  Yes
  • Solution Type:  Universal
  • Tilt:  + ° , - 15°
  • Typical Screen Sizes:  30 - 52"
  • Wall Stud Compatibility (inches):  16
  • Weight Capacity:  75 lbs (34.kg)
