Lex Products Corp BNZJ2-Z3
20 Amp "Break Out Box" to Edison Receptacles, Feed Thru

OUR PART #:  BNZJ2-Z3

The Lex Products Corp BNZJ2-Z3 Break Out Box is a 20 Amps per circuit, 6-circuit "Break Out Box", Bento Enclosure...
Learn More
Our Price: $656.32
List Price: $801.35
You save 18%!
Write the first review.
Lex Products Corp BNZJ2-Z3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

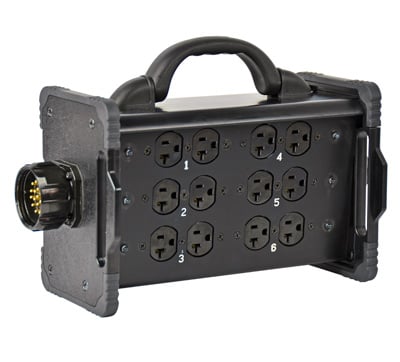

The Lex Products Corp BNZJ2-Z3 Break Out Box is a 20 Amps per circuit, 6-circuit "Break Out Box", Bento Enclosure, LSC19 panel mount male to (6) NEMA 5-20, 20 Amp duplex receptacles, Feed Thru, NEMA 1 Indoor.

Lex Products Corp BNZJ2-Z3 Features:

  • Provides 12 connection points for lights using 20 Amp duplex receptacles
  • Optional model available that enables easy mounting or horizontally with C-clamp* (see ordering information for more details)
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Feed thru option allows multiple boxes to be placed along the same feed
  • End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
  • Stackable and compact for easy storage

Lex Products Corp BNZJ2-Z3 Specifications:

  • Rating: 20 Amp, 6-circuit, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount male
  • Output: (6) NEMA  5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
  • Feed Thru: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount receptacle
  • Dimensions (LxWxH): 11.5" x 5.9" x 7.6"
  • Approximate Weight: 6.2 lbs.
