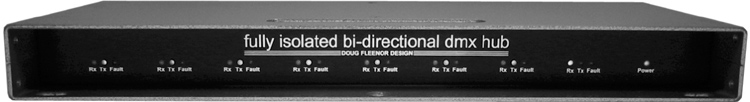

Doug Fleenor Designs BIDI8
DMX Isolation AMP

OUR PART #:  BIDI8

The DMX Hub offers isolation and signal buffering for bidirectional communication on a single pair of wires using pins 2 and 3 of a traditional DMX512 data link.
Learn More
Selected Model Price: $1,379.33
List Price: $1,796.00
Save up to 23%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs BIDI8
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The DMX Hub offers isolation and signal buffering for bidirectional communication on a single pair of wires using pins 2 and 3 of a traditional DMX512 data link. The hub differs from an opto-splitter in that any of the eight ports can receive data, with the seven remaining ports re-transmitting that data. Each of the eight ports offers fully bidirectional optical isolation and transient protection to 15,000 volts.

The DMX Hub is protocol independent, supporting ESTA's RDM protocol and other protocols including those from High End Systems and Martin Professional. Other features include a universal power supply, full bidirectional optical isolation, gold plated connectors (Neutrik), and a rugged tabletop, truss, or rack mountable enclosure.

Note: This product uses a slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections caused by improperly terminated cables.

Doug Fleenor Designs BIDI8 DMX Insolation AMP Specifications:

  • Port circuit: EIA-485 transceiver with 120 ohm failsafe termination between +Data and -Data
  • Input signal: 0.2 volts minimum, 12 volts maximum
  • Output signal: 1.5 volts (minimum) into 120 OhmTermination
  • Connectors: Gold plated 5 pin XLR (typically onemale, seven female),
  • Terminal Blocks Optional
  • Port protection: ±60V continuous, ±15KV transient
  • Isolation: 600 volts
  • Power input: 100 to 240 VAC 50/60 Hz, ½ Amp
  • Color: Front, Back: Black
  • Top, Bottom, Sides: Silver Hammertone
  • Size and weight: 6.5" deep, 1.7" high, 16.5" wide 4.5 pounds
Rack Kit
Doug Fleenor Designs RK16-1 Rack Kit
This unit is a rack kit; one 16" wide gray chassis in 1U.
