Lex Products Corp BI100L-6-515
15 Amp 6-Circuit NEMA 5-15 Edison to LSC19

OUR PART #:  BI100L-6-515

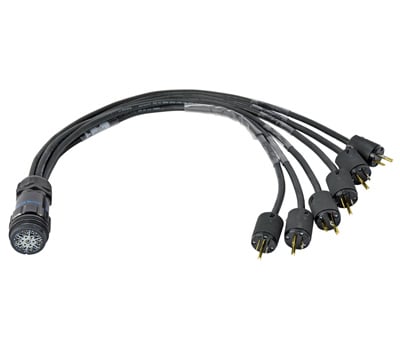

The Lex Products Corp BI100L-6-515 6 ft. Break-In Cable provides power to a 6-circuit LSC19 connector from six Edison plugs.
Learn More
Our Price: $245.43
List Price: $299.65
You save 18%!
Write the first review.
Lex Products Corp BI100L-6-515
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Lex Products Corp BI100L-6-515 6 ft. Break-In Cable provides power to a 6-circuit LSC19 connector from six Edison plugs.

Lex Product Corp Bl100L-6-515 Features:

  • Cables feature Lex Products’ exclusive LSC196-circuit lighting connectors with 12 interlocking keys to help prevents pinning of the interior within the male and female housing
  • Helps eliminate broken conductors and loose or damaged ground rings
  • Prevents misalignment of male and female circuit conductors
  • Machined aluminum LSC19 housing with hard black anodized finish provides enhanced durability
  • Silver plated brass contacts for high conductivity
  • Jr. Hard service cord is flexible and compact
  • All black construction blends into scenery and is ideal for stage or studio lighting applications

Lex Product Corp Bl100L-6-515 6' Break-In Cable Specifications:

  • Rating: 15 Amp, 125 VAC
    Maximum when used with 50% diversity of load (inaccordance with table NEC 520-44).
  • Male Connectors: (6) NEMA 5-15, 15 Amp Edison plugs
  • Cable Guage: 12/3 SJOW-A
  • Female Connector: LSC19-LFC-29
