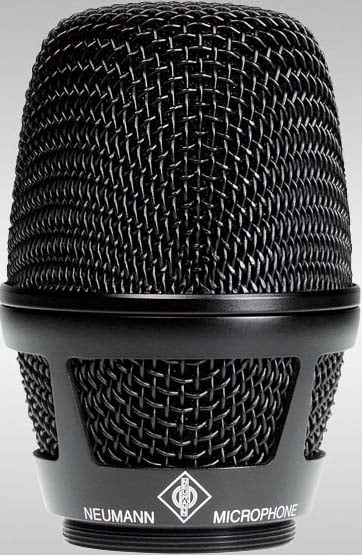

Neumann KK 205 Cardioid Condenser Capsule for Sennheiser Wireless SKM 2000 System

The design of Neumann capsule heads for the Sennheiser SKM2000 handheld transmitter is based on Neumann's KMS105 and KMS105 wired stage microphones. From these microphones, the capsule heads have acquired not only their outstanding sound characteristics and technical specifications, but also their robust construction and effective suppression of pop sounds and handling noise.

The sound of the capsule heads can be described as full, transparent and naturally warm, without excessive accentuation of the bass. Due to the "single polar pattern design", the polar patterns are very uniform over the entire frequency range, thus providing the basis for excellent resistance to feedback.

Features:

• Low susceptibility to handling noise
• Built-in, highly effective suppression of popping noises
• Easy dismantling for cleaning
• Pure, open, and neutral sound transmission

Specifications:

• Directional pattern: Supercardioid
• Frequency range: 40Hz - 20kHz
• Sensitivity*: 2.8mV/Pa ± 1dB ~/= –51dBV
  • *At 1kHz into 100kΩ rated load impedance. 1Pa ~/= 94dB SPL.
• Equivalent noise level, CCIR**: 35dB
• Equivalent noise level, A-weighted** 24dB-A
  • **According to IEC60268-1; CCIR-weighting according to CCIR468-3, quasi peak; A-weighting according to IEC61672-1, RMS
• Max. SPL for less than 0.5% THD***: 150dB
  • ***THD of microphone amplifier at an input voltage equivalent to the capsule output at the specified SPL.
• Dynamic range (A-weighted): >126dB-A
• Weight (incl. transmitter + power supply unit): approx. 500g
• Diameter: 55mm
• Length (+ SKM 2000): 272mm
• Color: Matte Black or Satin Nickel
