TV One 1T-FC-425
DVI to RGBHV/YPbPr/Y Converter

OUR PART #  1T-FC-425

Our Price: $159.00
In Stock

The 1T-FC-524 converts analog RGBHV or Component YPbPr inputs to DVI signals, enabling their display on DVI or HDTV monitors or other devices. An analog YPbPr input can be converted to either digital YPbPr or RGBHV. An analog RGBHV input can be converted to digital RGBHV only.

The 1T-FC-425 converts DVI to RGBHV or Component YPbPr, enabling viewing on analog displays or other devices. A DVI input can be converted to either analog RGBHV or YPbPr.

These units are Format Converters only and no video scaling takes place. The output resolution is the same as the input. All standard HDTV resolutions are supported on both products from 480p through 1080p, plus SDTV resolutions of 480i and 576i. PC resolutions up to 1920x1200 are supported. Both models are 5VDC powered and the Power Adapters are included. Locking DC Connectors are provided for security.

Features:

  • Analog to Digital or Digital to Analog
  • HDTV resolutions to 1080p
  • SDTV resolutions of 480i and 576i
  • PC resolutions up to 1920x1200
  • Plug and Play for Easy Installation
  • DVI Bandwidth to 1.65Gbps (Single Link)
  • Operation Frequency to 165Mhz

Specifications:

Video Inputs
1x DVI-D via DVI-I Connector

Video Outputs
1x RGBHV/YPbPr via HD-15

Component Signal I/O
Y Component 1V p-p@75O
Pb/Pr Component 0.7V p-p@75O

RGBHV Signal I/O
R-G-B 0.7Vp-p@75O
HV Sync 3-5V p-p@75O

Frequency and Bandwidth
Frequency Up to 165Mhz
DVI Bandwidth 1.65Gbps (Single Link)

PC I/O Resolutions
VGA 640x480: 60, 72, 75, 85Hz
SVGA 800x600: 60, 72, 75, 85Hz
XGA 1024x768: 60, 70, 75, 85Hz
Mac 1152x864: 70, 75, 85Hz
SXGA 1280x1024: 60, 75, 85Hz
UXGA 1600x1200: 60Hz

SDTV I/O Resolutions
480i 720x480: 60Hz (NTSC)
576i 720x576: 50Hz (PAL)

HDTV I/O Resolutions
480p 720x480: 60Hz
576p 720x576: 50Hz
720p 1280x720: 50, 60Hz
1080i 1920x1080 (i): 50, 60Hz
1080p 1920x1080 (p): 24, 25, 30, 60Hz

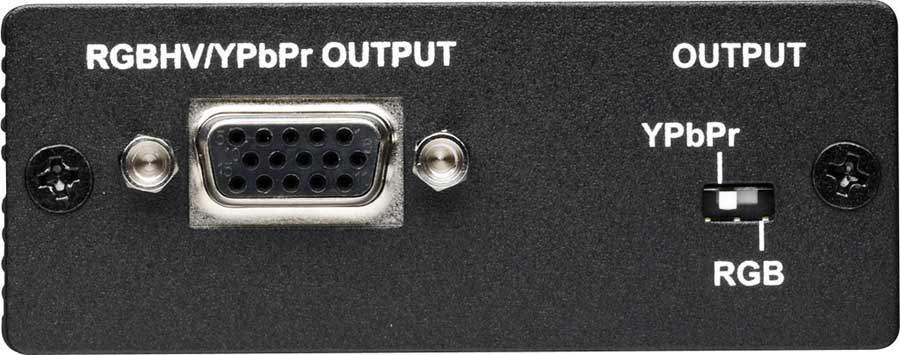

Output Format Switch
Digital Input Setting: YPbPr
Output Signal Analog YPbPr
Digital Input Setting: RGBHV
Output Signal Analog RGBHV

Compliance
DVI Rev 1.0

Mechanical
Size (H-W-D) 30x76x105mm (1.2”x3”x4.1”)
Weight (Net) 200 g (0.43 lbs)

Limited Warranty: 3 Years Parts and Labor

Environmental
Operating Temperature 0° to +50° C (+32° to +122° F)
Operating Humidity 10% to 90%, Non-condensing
Storage Temperature -10° to +60° C (+14° to +140° F)
Storage Humidity 10% to 90%, Non-condensing
Power Requirement External Power Supply: 5VDC @ 2A

Regulatory Approvals
Converter Unit FCC, CE, RoHS
Power Supply UL, CUL, CE, PSE, GS, RoHS

Accessories Included
1x Power Adapter: US, UK or Euro
1x Adapter Cable: HD-15 to 3 RCA
1x Operations Manual

TV One 1T-FC-425
DVI to RGBHV/YPbPr/Y Converter

OUR PART #  1T-FC-425

Product Information:

The 1T-FC-524 converts analog RGBHV or Component YPbPr inputs to DVI signals, enabling their display on DVI or HDTV monitors or other devices. An analog YPbPr input can be converted to either digital YPbPr or RGBHV. An analog RGBHV input can be converted to digital RGBHV only.

The 1T-FC-425 converts DVI to RGBHV or Component YPbPr, enabling viewing on analog displays or other devices. A DVI input can be converted to either analog RGBHV or YPbPr.

These units are Format Converters only and no video scaling takes place. The output resolution is the same as the input. All standard HDTV resolutions are supported on both products from 480p through 1080p, plus SDTV resolutions of 480i and 576i. PC resolutions up to 1920x1200 are supported. Both models are 5VDC powered and the Power Adapters are included. Locking DC Connectors are provided for security.

Features:

  • Analog to Digital or Digital to Analog
  • HDTV resolutions to 1080p
  • SDTV resolutions of 480i and 576i
  • PC resolutions up to 1920x1200
  • Plug and Play for Easy Installation
  • DVI Bandwidth to 1.65Gbps (Single Link)
  • Operation Frequency to 165Mhz

Specifications:

Video Inputs
1x DVI-D via DVI-I Connector

Video Outputs
1x RGBHV/YPbPr via HD-15

Component Signal I/O
Y Component 1V p-p@75O
Pb/Pr Component 0.7V p-p@75O

RGBHV Signal I/O
R-G-B 0.7Vp-p@75O
HV Sync 3-5V p-p@75O

Frequency and Bandwidth
Frequency Up to 165Mhz
DVI Bandwidth 1.65Gbps (Single Link)

PC I/O Resolutions
VGA 640x480: 60, 72, 75, 85Hz
SVGA 800x600: 60, 72, 75, 85Hz
XGA 1024x768: 60, 70, 75, 85Hz
Mac 1152x864: 70, 75, 85Hz
SXGA 1280x1024: 60, 75, 85Hz
UXGA 1600x1200: 60Hz

SDTV I/O Resolutions
480i 720x480: 60Hz (NTSC)
576i 720x576: 50Hz (PAL)

HDTV I/O Resolutions
480p 720x480: 60Hz
576p 720x576: 50Hz
720p 1280x720: 50, 60Hz
1080i 1920x1080 (i): 50, 60Hz
1080p 1920x1080 (p): 24, 25, 30, 60Hz

Output Format Switch
Digital Input Setting: YPbPr
Output Signal Analog YPbPr
Digital Input Setting: RGBHV
Output Signal Analog RGBHV

Compliance
DVI Rev 1.0

Mechanical
Size (H-W-D) 30x76x105mm (1.2”x3”x4.1”)
Weight (Net) 200 g (0.43 lbs)

Limited Warranty: 3 Years Parts and Labor

Environmental
Operating Temperature 0° to +50° C (+32° to +122° F)
Operating Humidity 10% to 90%, Non-condensing
Storage Temperature -10° to +60° C (+14° to +140° F)
Storage Humidity 10% to 90%, Non-condensing
Power Requirement External Power Supply: 5VDC @ 2A

Regulatory Approvals
Converter Unit FCC, CE, RoHS
Power Supply UL, CUL, CE, PSE, GS, RoHS

Accessories Included
1x Power Adapter: US, UK or Euro
1x Adapter Cable: HD-15 to 3 RCA
1x Operations Manual
