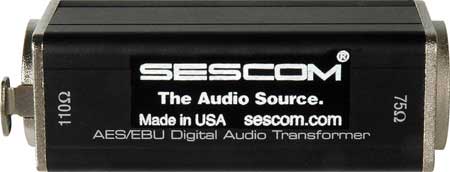

Sescom SES-AES-EBU-1
XLRF to 75 Ohm BNC Female AES/EBU Impedance Transformer

OUR PART #  SES-AES-EBU-1

Our Price: $16.95
List Price: $18.95
You save 11%! (Low Price Guarantee)
In Stock

The SES-AES-EBU-1 110 Ohm Female XLR In to 75 Ohm BNC Female Out AES/EBU Impedance Transformer.

Sescom SES-AES-EBU-1 Transformer Specifications:

  • 110 Ohm Female XLR to 75 Ohm AES-EBU in-line transformers
  • BNC to 3-Pin XLR Receptacle (male & female versions)
  • Provides an excellent impedance transformer at a reasonable cost formeeting the needs between analog to digital conversion
  • Perfect for medium haul cable runs
  • Also allows for longer cable runs via unbalanced coaxial lines rather thantwisted pair cables that have greater attenuation at relevant frequencies
  • Max Voltage / Max Run:= 5VPP / 250MW
  • 0.1 MHZ TO 6 MHZ
  • Insertion Loss < 0.3DB @ 0.1 MHZ TO 10 MHZ
  • VSWR / Return Loss = < 1.1 / > 24.6 DB

Sescom SES-AES-EBU-1
XLRF to 75 Ohm BNC Female AES/EBU Impedance Transformer

OUR PART #  SES-AES-EBU-1

Product Information:

The SES-AES-EBU-1 110 Ohm Female XLR In to 75 Ohm BNC Female Out AES/EBU Impedance Transformer.

Sescom SES-AES-EBU-1 Transformer Specifications:

  • 110 Ohm Female XLR to 75 Ohm AES-EBU in-line transformers
  • BNC to 3-Pin XLR Receptacle (male & female versions)
  • Provides an excellent impedance transformer at a reasonable cost formeeting the needs between analog to digital conversion
  • Perfect for medium haul cable runs
  • Also allows for longer cable runs via unbalanced coaxial lines rather thantwisted pair cables that have greater attenuation at relevant frequencies
  • Max Voltage / Max Run:= 5VPP / 250MW
  • 0.1 MHZ TO 6 MHZ
  • Insertion Loss < 0.3DB @ 0.1 MHZ TO 10 MHZ
  • VSWR / Return Loss = < 1.1 / > 24.6 DB
