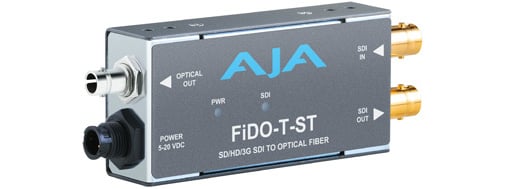

AJA Video Systems Inc FiDO-T-ST
Single Channel SD/HD/3G-SDI to ST Optical Fiber Converter with Looping SDI Output and Power Supply

OUR PART #:  FIDO-T-ST

The AJA FiDO-T-ST allows for the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single- mode fiber optic cable.
Learn More
Our Price: $445.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc FiDO-T-ST
Qty:
In Stock

Similar Products

The AJA FiDO-T-ST allows for the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single- mode fiber optic cable. The FiDO-T-ST converter meets all relevant SMPTE specifications and is rugged, versatile, and suitable for indoor or outdoor use. The FiDO-2-ST converter offers electrical isolation useful for eliminating ground loop problems.

AJA FiDO-T-ST Single Channel SD/HD/3G-SDI to ST Optical Fiber Converter Features:

  • Transport of SDI, HD-SDI, and 3G HD-SDI over single-mode optical fiber
  • Auto-detection of video format
  • All SDI Ancillary data including embedded audio is passed
  • All inputs, either SDI or fiber, are equalized and re-clocked
  • ASI compatible
  • Useful for eliminating ground loop problems
  • 5-20VDC power supply (included)
  • 5-year warranty

AJA FiDO-T-ST Single Channel SD/HD/3G-SDI to ST Optical Fiber Converter Specifications:

  • Formats:
    • 3Gb
    • 1.5Gb
    • 270Mb
    • Auto Select
  • Video Inputs and Outputs:
    • SDI (SMPTE 259/292/296/424), 2x BNC
    • 1x Single mode optical fiber, ST connector
  • Cable Equalization (BNC inputs, 1694 coax):
    • 270mb, 400m
    • 1.5Gb, 200m
    • 3Gb, 140m
  • Input/Output Return Loss (BNC): >15db, 270Mb - 3Gb
  • Optical Outputs:
    • Wavelength: 13 10 nm
    • Output Power: -2dBm typical
  • Dimensions: 4.6" x 1.71" x 0.85" (117 x 43.5 x 21.6 mm)
  • Power:
    • +5-20 VDC
    • 1.5 watts
