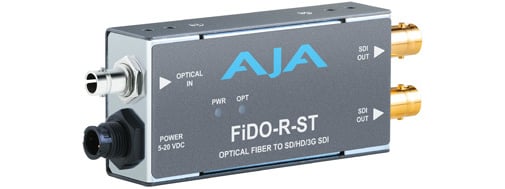

AJA Video Systems Inc FiDO-R-ST
1 Channel ST Optical Fiber to SD/HD/3G-SDI Mini Converter with Power Supply

OUR PART #:  FIDO-R-ST

The AJA FiDO-R-ST 1-channel ST Optical Fiber to SDI mini converter allows for the transport of SDI, HD-SDI...
Learn More
Our Price: $445.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AJA Video Systems Inc FiDO-R-ST
Qty:
In Stock

Similar Products

The AJA FiDO-R-ST 1-channel ST Optical Fiber to SDI mini converter allows for the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single-mode fiber optic cable with ST connectors. The FiDO-R-ST mini converter meets all relevant SMPTE specifications and is rugged, versatile, and suitable for indoor or outdoor use.

The FiDO-R-ST also offers unmatched flexibility and electrical isolation useful for eliminating ground loop problems.

AJA FiDO-R-ST Features:

  • Transport of SDI, HD-SDI, and 3G HD-SDI over single-mode optical fiber
  • Auto-detection of video format
  • All SDI Ancillary data including embedded audio is passed
  • All inputs, either SDI or fiber, are equalized and re-clocked
  • ASI compatible
  • Useful for eliminating ground loop problems
  • 5-20VDC power supply (included)
  • 5-year warranty

AJA FiDO-R-ST Specifications:

  • Formats:
    • 3Gb
    • 1.5Gb
    • 270Mb
    • Auto Select
  • Video Inputs and Outputs:
    • SDI (SMPTE 259/292/296/424), 2x BNC
    • 1x Single mode optical fiber, ST connector
  • Cable Equalization (BNC inputs, 1694 coax):
    • 270mb, 400m
    • 1.5Gb, 200m
    • 3Gb, 140m
  • Input/Output Return Loss (BNC): >15db, 270Mb - 3Gb
  • Optical Outputs:
    • Wavelength: 13 10 nm
    • Output Power: -2dBm typical
  • Dimensions: 4.6" x 1.71 " x 0.85" (117 x 43.5 x 21.6 mm)
  • Power:
    • +5-20 VDC
    • 1.5 watts
