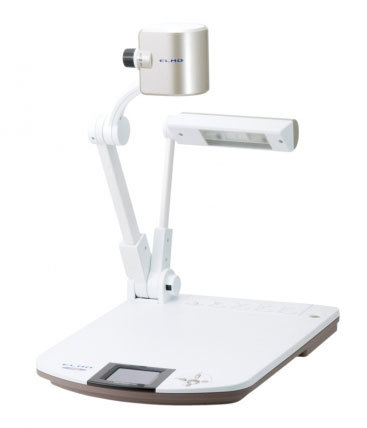

Elmo P30HD
Digital Visual Presenter, Product# 1338

OUR PART #:  P30HD

Even in an increasingly virtual world, reality is often the best teacher.
Learn More
Our Price: $2,691.00
List Price: $2,990.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Elmo P30HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Even in an increasingly virtual world, reality is often the best teacher. Actual specimens, real three-dimensional objects, authentic documents, and pages directly from a book all make visual presentations more diverse, realistic, and vivid. Make the most of your real-world materials with an ELMO P30HD Visual Presenter. Deliver real-time, true-to-life presentations that catch and keep the attention of everyone in the room. Integrate your resources into data files for easy transfer to a PC or SD card for storage. And let the learning begin.

Features:

  • 3.4M CMOS & Full HD (1080p)
  • Powerful 128√óZoom
  • Built-In 3.5-Inch LCD Monitor
  • Adjustable Free-Angle Camera Arm
  • Easy Access to Primary Functions and Quick Setup
  • 3D Noise Reduction
  • 30 fps for Smooth Motion Display
  • Full-HD & HDMI Output
  • Wireless remote control
  • RS-232C
  • Presentation Support Tools
  • Recording
  • Annotate on Live Images
  • Annotate Live Images without a Computer
  • Obtain added features with a computer

Specifications:

Camera

  • Image pick-up device: 1/2.8" CMOS, 3,400,000 pixels
  • Total pixels: 2144(H) x 1588 (V)
  • Image pick-up device: 1920 (H) x 1536 (V)
  • Effective pixels: 1/2.8" CMOS, 3,400,000 pixels
  • Frame rate: 30 frames/sec.
  • Resolution - RGB output: 800 (H) x 800 (V) TV lines

Optics

  • Zoom: Powered, 16x optical
  • Lens: F2.7, f=4.9 mm to 78.4 mm
  • Shooting area:
  • 1080p: Max. 400x223mm Min.27x15mm
  • 720p : Max. 400x223mm Min.27x15mm
  • SXGA : Max. 400x320mm Min.27x22mm
  • WXGA: Max. 400x248mm Min.27x17mm
  • XGA : Max. 400x299mm Min.27x20mm
  • Focus: Auto/Manual/Zoom Sync

Functions

  • White balance: Auto/One-Push/Manual
  • Image mode: Text 1, Text 2, Text 3, Graphics1, Graphics2l
  • Edge enhancement: Provided (only for Graphics1 mode)
  • Still Image storage: Provided
  • Movie storage: Provided
  • Digital zoom: 8x
  • Gamma adjustment: Provided (only for Graphics1 mode)
  • OSD (on-screen display): Provided
  • Image save: SD memory card/SDHC memory card/USB memory
  • State presetting: Up to 3 user settings
  • Support function: Highlight, Mask, Scroll(in digital zoom), Mosaic, Split screen, PinP(Picture-in-Picture), Color filter, Pause, Image rotation, Positive/Negative conversion, Color/B&W selection

Interface

  • Input selection: Main/External
  • Output terminal:
  • RGB output mini D-sub 15P connector, femalex1
  • Composite video output RCA pin jack/75O unbalancedx1
  • HDMI output terminal x1
  • Line Out terminal F3.5mmstereo minijack x1
  • Input terminal:
  • RGB input mini D-sub 15P connector, female x1
  • Mic In/Line Our terminal (shared), 3.5mm-diameter stereo jack x1
  • USB device (2.0 compliant) Mini-B receptacle x1
  • RS-232C D-sub 9P connector male x1
  • Analog RGB output:
  • 1080P: 1920x1080@60Hz
  • 720P: 1280x720@60Hz
  • SXGA: 1280 x 1024 @60Hz
  • WXGA: 1280 x 800 @60Hz)
  • XGA: 1024 x 768 @60Hz
  • HDMI output: Image output: 1080p/720p
  • Audio output: PCM44.1kHz sampling frequency
  • Memory Interface: SD memory card slot x1, USB host(2.0 compliant) Type A receptacle x1

Other

  • Accessories: AC Adapter, Power cord, RGB cable, USB cable, IR remote control, Strap(for remote control), AAA batteries(for remote control), Slide shooting adapter, Warranty card, Image Mate CD-ROM, Image Mate installation manual, Instruction manual (CD-ROM), Important safe guards
  • Power source: 12V DC (AC adapter AC100 - 240V)
  • Dimensions (WxDxH): Set up
    14 5/8" x 19" x 21 5/8" (376 x 482 x 549 mm)
  • Dimensions (WxDxH): Folded
    14 5/8" x 19" x 7 1/8" (376 x 482 x 181 mm)
  • Weight: Approx. 10.1 lbs (4.7 kg)
