Atlas IED RX14-30SFD 14RU mobile Equipment Rack, 30" Deep

OUR PART #: RX14-30SFD MFR #: RX14-30SFD

Copied to clipboard

The RX14-30SFD mobile cabinet is ruggedly constructed of 16-ga. CRS and includes heavy-duty casters. ...Read more

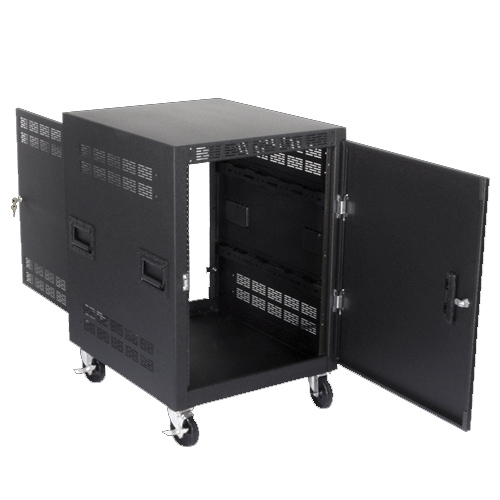

Atlas IED RX14-30SFD 14RU Mobile Equipment Rack, 30" Deep Image 1
Atlas IED RX14-30SFD 14RU Mobile Equipment Rack, 30" Deep
Our Price: $1,023.99
List Price: $1,276.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$29/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The RX14-30SFD mobile cabinet is ruggedly constructed of 16-ga. CRS and includes heavy-duty casters. Equipped with a front pair of 11-gauge, CRS adjustable mounting rails tapped 10–32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing. Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

Cabinet is 30" deep and has a vertical panel space height of 24-5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience. Easy wiring access is provided through three wire isolation holes (two,

1 1/2" diameter, and one oblong 1-1/2" x 3") in the rear base flange. The units’ four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.

Also include vented and removable locking doors, as well as vented top-front and top-rear flanges. Surface mounting front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to 1-1/2" from the front of the rail. Cabinet is finished in #962 black epoxy.

Features:

  • 16-ga. CRS Frame Manufactured to E.I.A. Standards
  • Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
  • Includes 1 Pair Adjustable, 11-ga., Front-to-Rear Mounting Rails
  • Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
  • Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
  • Removable Front and Rear Doors (Right or Left-Hand Hinging) are Identically Keyed for Security and Convenience
  • RR14 optional rear mounting rails available
  • Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
  • Standard Rack Includes Base, Top Panel, Side Panels, Casters, Front and Rear Doors
  • Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
  • Welded Frame for Long-Lasting Durability

Specifications:

  • Depth 30" (76.2 cm)
  • Rack Spaces 14
  • Width 22 5/16" (56.67502 cm)
  • Usable Depth 28.5" (72.39 cm)
  • Height 33 9/16" (85.25002 cm)
