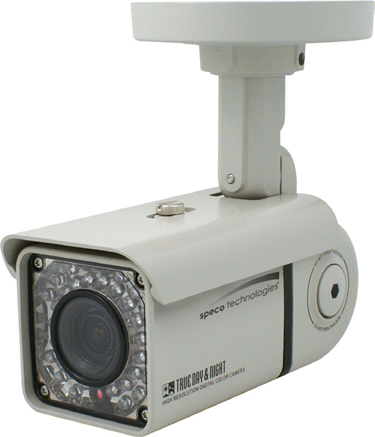

Speco Technologies HT7816DNV
Weather Resistant Day/ Night Square Bullet IR Camera

OUR PART #  HT7816DNV

Our Price: $974.80
Usually ships in 7-14 business days.
Need it sooner? Call us!

This unit is a weather resistant bullet camera, featuring IR for day/night recording.

Features:

  • 600 lines of color resolution
  • True day/night performance
  • 12VDC / 24VAC dual voltage operation
  • Full OSD
  • Split glass technology
  • Weather resistant & low temperature operation
  • EZ Mount system simplifies installation
  • Includes video test connector
  • 5 year warranty

Specifications:

  • Image Sensor.......................1/3” Sony Super-HAD™ CCD - 410K
  • Resolution............................600 TV lines (IR on) / 550 TV lines (IR off)
  • Minimum Illumination............0 lux (IR on) / 0.1 lux (IR off)
  • S/N Ratio..............................More than 50dB (weight on)
  • Electronic Shutter.................1/60 sec. - 1/100,000 sec.
  • Scanning Frequency............15.734kHz (H) / 59.94Hz (V)
  • Scanning System.................2:1 interlace
  • Synchronization....................Internal / line lock in 24VAC
  • TV System............................NTSC
  • Number of LEDs...................30 built-in IR LEDs
  • IR Range..............................Up to 130’ (depending on scene reflection)
  • Power Consumption.............230mA (IR off) / 450mA (IR on)
  • Power Supply.......................12VDC / 24VAC (dual voltage) (power supply not included)
  • Operating Temperature/ Humidity...............................-20° F - 122° F / RH 95% max.
  • Storage Temperature/ Humidity...............................-4° F - 140° F / RH 95% max.
  • Dimensions...........................3.1” (W) x 3” (H) x 6.2” (L)
  • Weight..................................3.3 lbs.

Speco Technologies HT7816DNV
Weather Resistant Day/ Night Square Bullet IR Camera

OUR PART #  HT7816DNV

Product Information:

This unit is a weather resistant bullet camera, featuring IR for day/night recording.

Features:

  • 600 lines of color resolution
  • True day/night performance
  • 12VDC / 24VAC dual voltage operation
  • Full OSD
  • Split glass technology
  • Weather resistant & low temperature operation
  • EZ Mount system simplifies installation
  • Includes video test connector
  • 5 year warranty

Specifications:

  • Image Sensor.......................1/3” Sony Super-HAD™ CCD - 410K
  • Resolution............................600 TV lines (IR on) / 550 TV lines (IR off)
  • Minimum Illumination............0 lux (IR on) / 0.1 lux (IR off)
  • S/N Ratio..............................More than 50dB (weight on)
  • Electronic Shutter.................1/60 sec. - 1/100,000 sec.
  • Scanning Frequency............15.734kHz (H) / 59.94Hz (V)
  • Scanning System.................2:1 interlace
  • Synchronization....................Internal / line lock in 24VAC
  • TV System............................NTSC
  • Number of LEDs...................30 built-in IR LEDs
  • IR Range..............................Up to 130’ (depending on scene reflection)
  • Power Consumption.............230mA (IR off) / 450mA (IR on)
  • Power Supply.......................12VDC / 24VAC (dual voltage) (power supply not included)
  • Operating Temperature/ Humidity...............................-20° F - 122° F / RH 95% max.
  • Storage Temperature/ Humidity...............................-4° F - 140° F / RH 95% max.
  • Dimensions...........................3.1” (W) x 3” (H) x 6.2” (L)
  • Weight..................................3.3 lbs.
