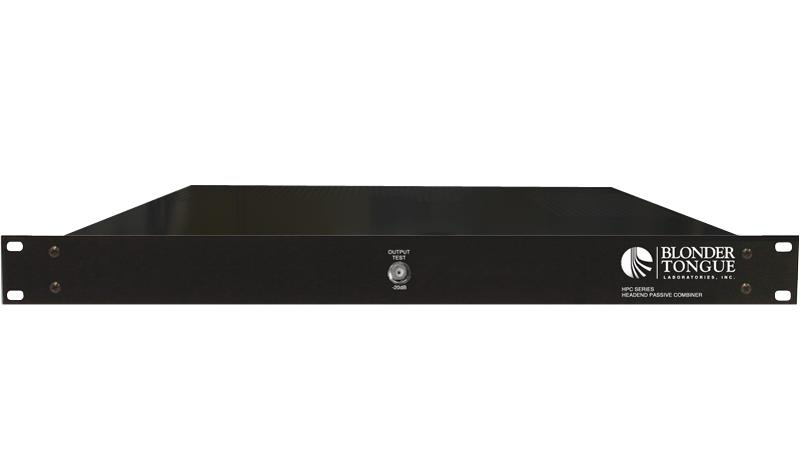

Blonder-Tongue HPC-32
Headend Combiner, Passive

OUR PART #:  HPC-32

HPC series consists of 5-1000 MHz passive RF combiners designed for use in a headend to combine the output of up to 32 single-channel devices such as modulators and processors.
Learn More
Our Price: $110.36
List Price: $111.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

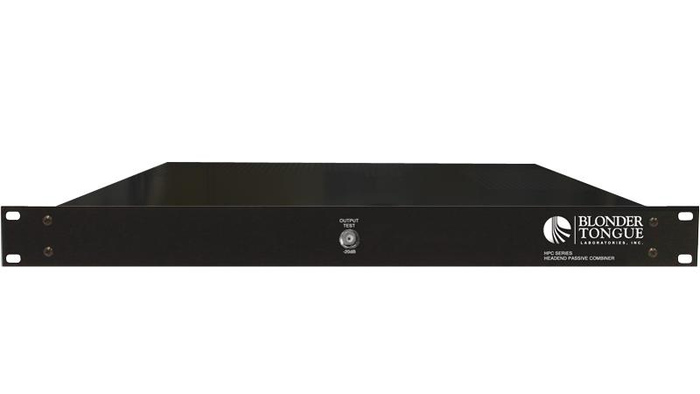

Blonder-Tongue HPC-32
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

HPC series consists of 5-1000 MHz passive RF combiners designed for use in a headend to combine the output of up to 32 single-channel devices such as modulators and processors. HPC is available in 8-, 12-, 24-, or 32-port models. All HPC models feature a compact design, high isolation between ports, low net combining loss, and RFI shielding for minimized egress/ingress interference. A front-panel -20 dB test port (75-ohm “F” type connector) allows testing of the unit’s output without interrupting the service.

Specifications:

  • Frequency (MHz): 5-1000
  • Max. Insertion Loss (dB):
      -  5-40: 17.2
      -  40-450: 17.5
      -  450-750: 19
      -  750-1000: 20
  • Min. Isolation (dB):
      -  5-40: 30
      -  40-450: 32
      -  450-750: 30
      -  750-1000: 28
  • Test Port (dB):
      -  5-40: 20+/-0.5
      -  40-450: 20+/-0.5
      -  450-750: 20+/-0.5
      -  750-1000: 20+/-0.5
  • Input Return Loss (dB):
      -  5-40: 20
      -  40-450: 20
      -  450-750: 20
      -  750-1000: 18
  • Output Return Loss (dB):
      -  5-40: 20
      -  40-450: 20
      -  450-750: 18
      -  750-1000: 18
  • Impedance:
      -  5-1000: 75Ohms
  • Dimensions (W x D x H): 19.0 x 8.0 x 1.75 inches (483 x 203 x 44 mm)
  • Shipping Weight: 2.3 lbs (1.04 kg)
  • Connectors:
      -  Inputs: "F" Female
      -  Output: "F" Female
      -  Test Port: "F" Female
