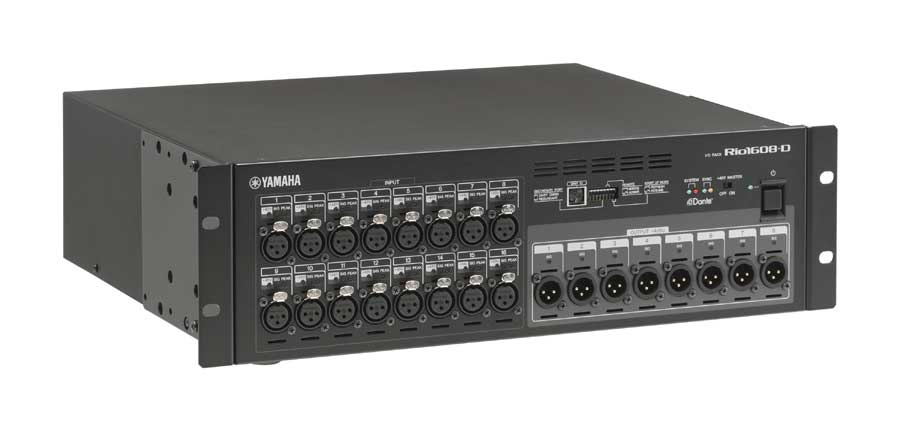

Yamaha RIO1608-D
16 In x 8 Out Digital Stage Box for the CL Series Mixing Consoles


Call for info!

Yamaha's Rio1608-D 3U size digital stage box has 16 ins and 8 outs. The Rio Series I/O racks employ Dante network audio protocol for exceptional flexibility and freedom in setup and placement, while delivering natural, musical sound that brings out the full sonic potential of mixing consoles and other system components. They also allow redundancy for the utmost reliability in any application. Four models accommodate a wide range of I/O requirements.

Yamaha RIO1608-D Features:

  • Sonic performance that brings out the best in any system
  • Dante network protocol contributes to greater system scalability and flexibility
  • Support for CL series consoles as well as other Dante-based systems
  • Automatic digital-stage compensation for analog gain changes (CL series only)
  • Four models flexibly accommodate any system requirements

Yamaha RIO1608-D Specifications:

  • Sampling frequency rate
  • Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • External:
    • 44.1kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm
    • 48kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm
    • 88.2kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm
    • 96kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm
  • Signal Delay: Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
  • Total harmonic distortion OMNI IN to OMNI OUT Input Gain=Min.
    • Less than 0.05% 20Hz-20kHz @+4dBu into 600 Ohms, Fs=44.1kHz, 48kHz
    • Less than 0.05% 20Hz-40kHz @+4dBu into 600 Ohms, Fs=88.2kHz,96kHz
  • Frequency response
    • +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz
    • +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
  • Dynamic range: 108dB typ., INPUT to OUTPUT, Input Gain = Min.
  • Hum & noise level (20Hz to 20kHz), Rs=150 Ohms
    • -128dBu Equivalent input noise, Input Gain=Max.
    • -88dBu Residual output noise, ST master off
  • Crosstalk (@1kHz) Input Gain=Min.
    • -100dB, Adjacent INPUT/OUTPUT channels
  • Phantom Power: +48V
    • Power requirements: AC110V-240V, 50/60Hz
    • Power consumption: 70W
  • Temperature Range
    • Operating temperature range: 0 - 40°
    • Storage temperature range: -20 - 60°
  • Dimensions: (8 7/8"(W) x 5 3/4"(H) x 14 1/4"(D)
  • Weight: 19.4lb
