Yamaha RIO3224-D
32 In x16 Out Digital Stage Box


Call for info!

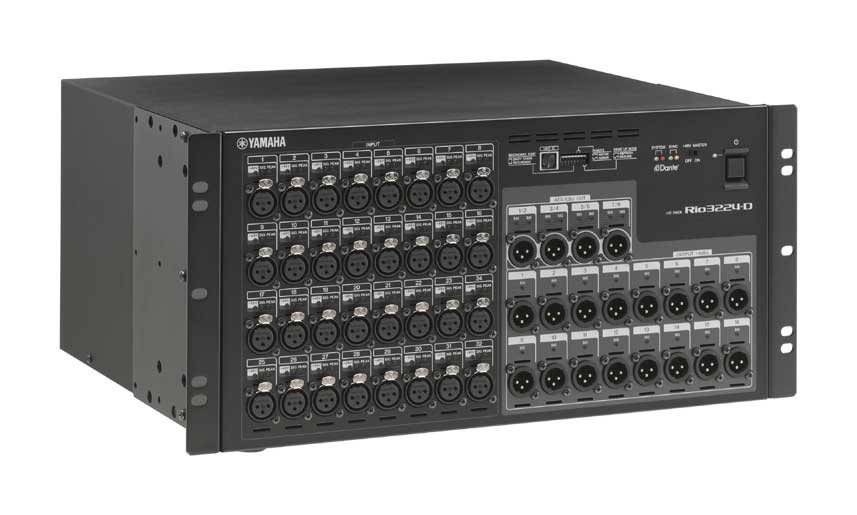

The RIO3224-D is a rack-mountable I/O unit. The 5U size Rio3224-D provides 32 ins, 16 outs, and four AES/EBU outputs, and connects to the console via Dante network protocol for low-jitter, low-latency digital audio communication.

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

Yamaha RIO3224-D Specifications:

  • Sampling frequency rate
    Internal 44.1kHz, 48kHz, 88.2kHz,96kHz
    External 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% ( ±200ppm) /48kHz: +4.1667%, +0.1%, -0.1%, -4.0% ( ±200ppm) / 88.2kHz: +4.1667%, +0.1%,-0.1%, -4.0% ( ±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0%
  • Signal delay Less than 3ms INPUT to OUTPUT, connect with CL5 usingDante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
  • Total harmonic distortion Less than 0.05% 20Hz-20kHz@+4dBu into 600 Ohms, Fs= 44.1kHz, 48kHz / Lessthan 0.05% 20Hz-40kHz@+4dBu into600Ohms, Fs=88.2kHz, 96kHz INPUT to OUTPUT, InputGain= Min.
  • Frequency response +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output@1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to+4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
  • Dynamic range 108dB typ., INPUT to OUTPUT, Input Gain = Min
  • Crosstalk -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
  • Power requirements US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China:110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
  • Power consumption 120W
  • Dimensions W 480mm (18 7/8in)
    H 232mm (91/4in)
    D 361.5mm (14 1/4in)
  • Net weight 12.4kg (27.3lb)
  • Others:  Temperature Range: Operating temperature range: 0 - 40degrees, Storage temperature range: -20 - 60 degrees
