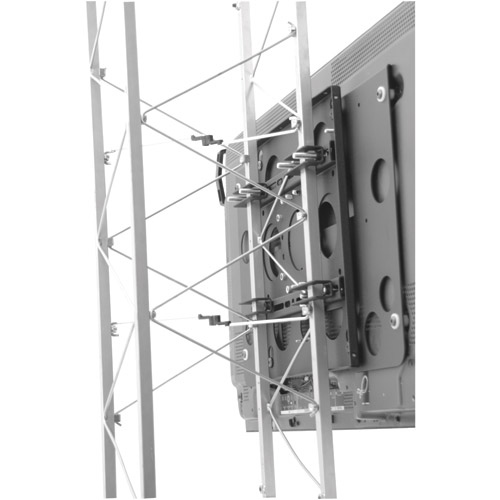

Chief TPS2306 Large Fixed Truss & Pole Mount

Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.

Note: Clamps for different size poles and truss work are required and must be ordered separately.

Chief TPS2306 Features:

• Install on vertical or horizontal truss
• Attach displays in portrait or landscape orientation
• TPS/TPP span most truss systems up to 14" (OD)
• Truss/Pole clamps fit a wide variety of truss and pole dimensions
• Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
• Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
• Integrated security allows display to be locked to mount by adding a padlock
• Compatible with TPK clamp accessories

Chief TPS2306 Specifications:

• Certifications: UL Listed
• Color: Black
• Minimum Depth: 1.08" (27.4mm)
• Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
• Orientation: Landscape, Portrait
• Overall Dimensions (H x W x D): 16.2" x 17.1" x 1.1" (412 x 433 x 27mm)
• Post-Installation Leveling (Roll): Yes
• Solution Type: Custom
• Typical Screen Sizes: 42 - 71"
• Weight Capacity: 150 lbs (68.kg)
