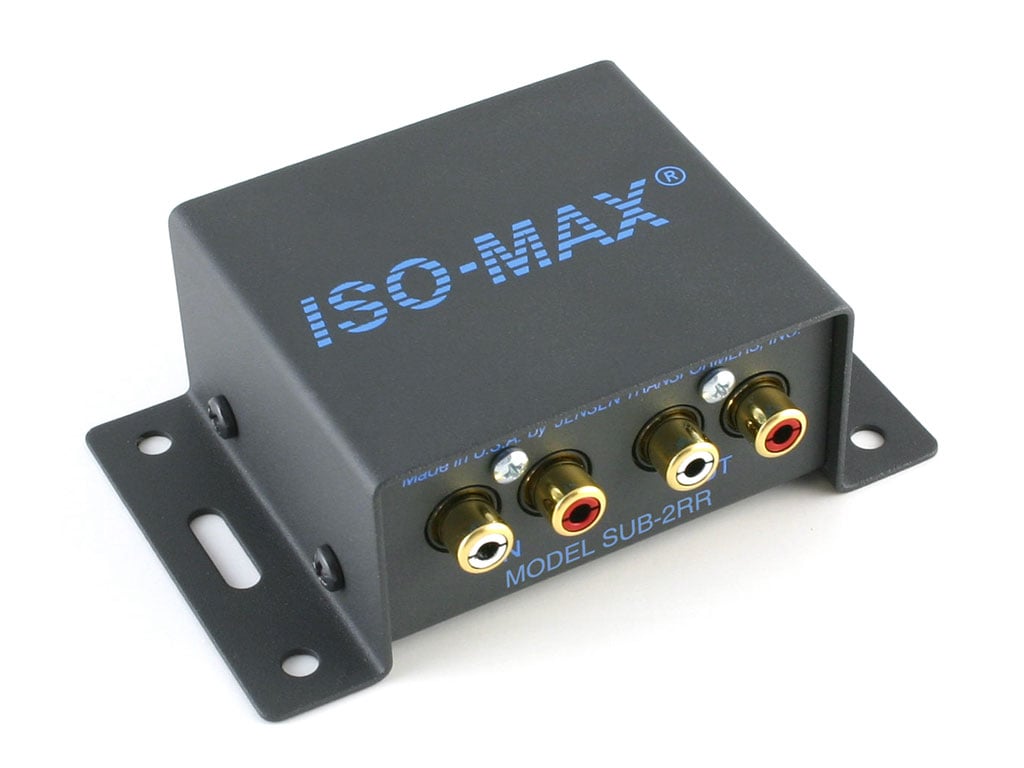

Jensen Transformers SUB-2RR 2 Channel Low Frequency Audio Isolator

Low frequency audio isolator - ideal for 2 channel sub-woofer applications.

The specially designed transformers in this unit provide unparalleled low frequency response while providing over 100dB of common mode isolation, to solve even the most difficult sub-woofer installation problems. The zero dB insertion loss also prevents carefully calibrated system levels from being disturbed.

Features:

• Eliminates the inherent ground noise coupling mechanism
• Common-mode ground noise rejection of 105 dB at 60 Hz
• Extended low frequency response: -1dB at 0.4Hz, -3dB at 0.15Hz
• Extremely low distortion: 0.01% at 20Hz and -10dBV
• 0dB insertion loss with 600 Ohm source and 47 kOhm load
