Biamp DS8-W 8" 2-Way Surface Mount Speaker, White

OUR PART #: DS8-W

Copied to clipboard

The Community Distributed Design Series DS8 is a full-range, compact, two-way system, ideal for installations where space is a premium. ...Read more

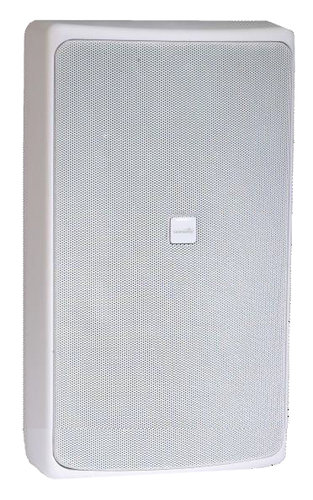

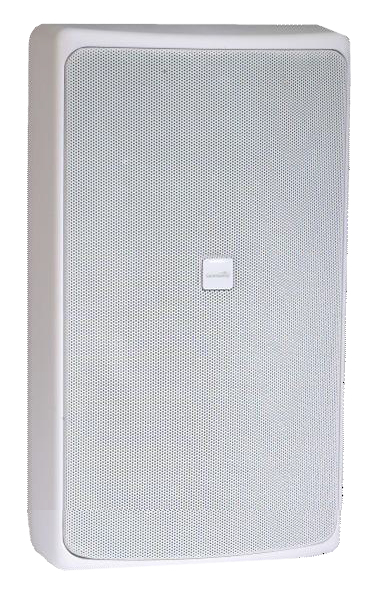

Biamp DS8-W 8" 2-Way Surface Mount Speaker, White Image 1
Biamp DS8-W 8" 2-Way Surface Mount Speaker, White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Community Distributed Design Series DS8 is a full-range, compact, two-way system, ideal for installations where space is a premium. Easily outperforming loudspeakers of a larger size format, the DS8 provides high power handling, high sensitivity and realistic sound reproduction. With a modern architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for indirect outdoor use, the DS8 can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines. A convenient front-accessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included Infin-A-Ball™ multi-angle wall mounting bracket which allows low profile mounting and precise positioning of the enclosure over a broad tiltswivel range.

Community DS8 Features:

  • Modern architectural design
  • Same components and voicing as the Distributed Design ceiling loudspeaker family
  • High efficiency, high output, high intelligibility, low distortion
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • Front-accessible power tap switch for selectable 8 Ohm or 70V/100V operation
  • Infin-A-Ball™ low profile mounting bracket included
  • Weather-resistant construction with treated drivers, two-layer powder coated grilles and protected wiring ingress

Community DS8 Specifications:

  • Loudspeaker Type: Two-way, full-range, coaxial surface mount loudspeaker, 8 Ohm or 70V/100V operation
  • Operating Range: 60 Hz - 22 kHz
  • Frequency Response: 70 Hz - 20 kHz (±4.3 dB)
  • Max Input Ratings (8 Ohm): 150W continuous, 375W program, 35 volts RMS, 77 volts momentary peak
  • Transformer Taps:
    • 70V: 120W, 60W, 30W, 15W and low impedance
    • 100V: 120W, 60W, 30W
  • Sensitivity (1W/1m): 95 dB SPL (125 Hz to 12.5kHz 1/3 octave bands); 96 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output: 117 dB SPL / 124 dB SPL (peak 8 ohm)
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 6.5 Ohms @ 220 Hz
  • Nominal Coverage: 115º conical (+46° / -46°, 500 Hz to 6 kHz)
  • Axial Q / DI: 5.7 / 7.6, 500 Hz to 6 kHz
  • Crossover Frequency: 1.3 kHz
  • Recommended Signal Processing: 60 Hz, 24 dB/Oct high pass filter
  • Drivers: LF 1x 8" cone; HF 1x 1.25" exit compression driver
  • Driver Protection: Self-resetting solid state circuit breaker
  • Input Connection: 4-screw Euroblock connector for two pair of 2-wire leads (uninterrupted whether the loudspeaker is connected or not) concealed in the base of the mounting bracket; and a 2-pin Euroblock connector on the loudspeaker enclosure
  • Controls: Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo
  • Enclosure: ABS plastic, matte finish, paintable
  • Finish: White
  • Mounting/Rigging Provisions: Infin-A-Ball™ mounting system with hidden internal wiring
  • Grille: Dual-layer powder coated steel
  • Safety Features: Built-in safety cable attachment loop
  • Environmental: IP55 rated loudspeakers, IP56 rated connector cover, designed to Mil Spec 810
  • Required Accessories: Electronic high pass filter
  • Supplied Accessories: Infin-A-Ball™ mounting bracket, Hex wrench, Flathead screwdriver
  • Optional Accessories: DS-WMP Wall Mount Plate
  • Dimensions:
    • Height: 18.5 inches (470 mm)
    • Width: 9 inches (230 mm)
    • Depth: 10.1 inches (257 mm)
  • Weight (without bracket): 17.6 lbs (8 kg)
  • Weight (with bracket): 18.2 lbs (8.3 kg)
