Atlas IED TSD-PA10VG 10W Mono Power Amp

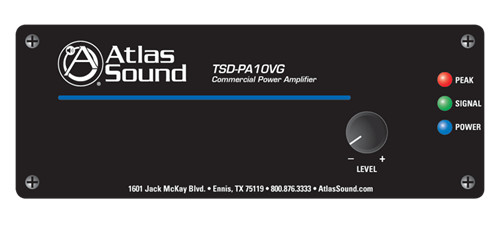

The Atlas Sound TSD-PA10VG is a cost effective mono amplifier for 4 Ohms and distributed constant voltage speaker systems. Applications such as house of worship cry rooms, restrooms, and foyers will benefit from this compact reliable amplifier. The TSD-PA10VG is also a good alternative for small projector systems as it can be used with as many as (8) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting. For sound masking applications the TSD-PA10VG has the capacity to drive up to 17 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper resistant cover (included).

Atlas Sound TSD-PA10VG Features:

• 10W into 4 Ohms
• 5W into 8 Ohms
• 10W into 25V/70.7V/100V Loads
• One (1) Balanced Input

Atlas Sound TSD-PA10VG Specifications:

• Power Output:
  • 10W @ 4 Ohms
  • 5W @8 Ohms
  • 10W @ 25V/70V/100V Loads
• Line Input Level 500mV (-6dBV) Balanced
• Frequency Response 40Hz - 20kHz (+/-3dB)
• THD .5% & 1kHz
• Signal to Noise Ratio 78dBV
• 24VDC Power Requirements 240mA
• Dimensions (HxWxD): 1.5" x 4" x2.75" (3.81 x 10.16 x 6.99 cm)
