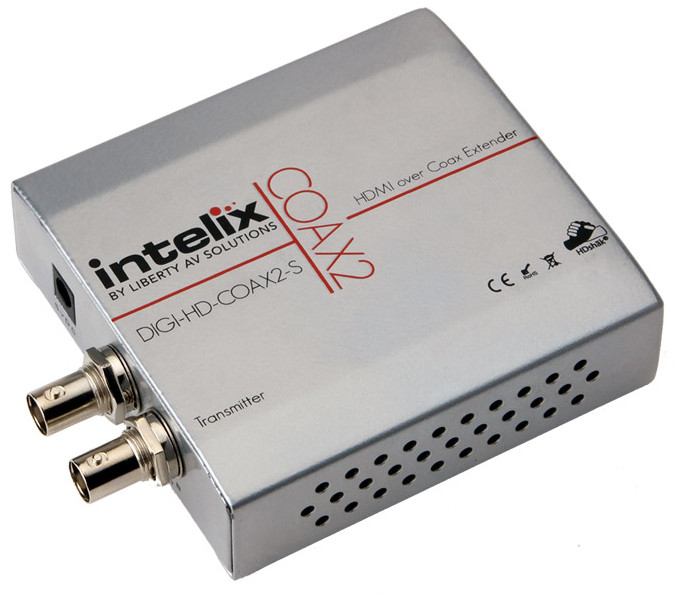

HDMI Over Single Coax Transmitter Unit


Designed for demanding commercial and residential audio-visual applications...
Learn More
Our Price: $365.36
List Price: $405.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Designed for demanding commercial and residential audio-visual applications, the Intelix DIGI-HD-COAX-S employs Intelix’s industry-leading digital processing to transmit high-definition HDMI signals over a single coaxial cable. The unit transmits 1080p up to 300 feet, 1080i and 720p up to 650 feet. Plus, built-in amplified signal splitting provides seamless daisy-chain distribution to ten remote destinations.

Intelix DIGI-HD-COAX2-S Includes:

  • Power supply
  • 75ohm terminator
  • Two mounting brackets

Intelix DIGI-HD-COAX2-S Features:

  • Extend HDMI over a single coaxial cable. Forget expensive HDMI cables and the distance limitations of twisted pair—the DIGI-HD-COAX2 transmits HDMI over a single RG6 or RG59 cable.
  • Support two simultaneous displays. The DIGI-HD-COAX2-S transmitter features dual outputs, allowing two distribution paths to operate simultaneously.
  • HDMI 1.3 and HDCP compliant. The DIGI-HD-COAX2 is HDMI 1.3 and HDCP compliant.
  • Built Intelix tough. The DIGI-HD-COAX2 features a durable metal chassis.

Intelix DIGI-HD-COAX2-S Specifications:

  • Video Amplifier Bandwidth 10.4 Gb/s
  • RG6 Max Distance (point-to-point or between links)
    • 1080p: 300’ (90m)
    • 1080i: 650’ (200m)
    • 720p:650’ (200m)
  • RG59 Max Distance (point-to-point or between links)
    • 1080p: 250’ (80m)
    • 1080i: 500’ (150m)
    • 720p:500’ (150m)
  • Max Links 7
  • Transmitter Connectors (DIGI-HD-COAX2-S)
    • One (1) HDMI type A connector and two (2) female BNC
  • Supported Audio
    • PCM 2ch @ 48 kHz (2.0)
    • PCM 6ch @ 48kHz (5.1)
    • PCM 8ch @ 48kHz (7.1)
  • Output Colorspace: YCbCr 4:2:2
  • Supported Resolutions
    • 720p60, 1080i30, 1080p60, 1080p24 (3D not supported)
  • Operating Temp Range: 32° to 104°F (0° to 40°C)
  • Operating Humid Range: 10 to 85% non-condensing
  • Dimensions (HxWxL):
    • 1.14” x 3.64”  x 3.84” (4.73” incl. connectors)
    • 29mm x 92.5mm x 97.5mm (120mm incl. connectors)
  • Enclosure: Metal (Silver)
  • Power 5 VDC / 2A
  • Regulatory CE, RoHS
  • Compliancy HDCP
  • Shipping Weight 1.45lbs. (660g)
  • Max HDMI Cable Length 6’ (2m) or less
