OUR PART # SPC83LUNT
The SPC83LUNT is a Mic level splitter with 8 channels, 1 direct out, 2 isolated outs w/gnd lifts, screw terminal I/O, 1 RU. It passes phantom power from direct in to direct out.

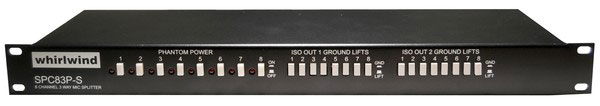

Note: Image is for reference only. Actual item being sold may differ.
The Whirlwind SPC8x series of passive microphone splitters are the ideal, expandable solution for permanent installations. Each unit provides 8 channels of mic level splitting circuitry in a single rack space unit. Depth is 7.5" including tie bar.
All connections are made via removable Phoenix style connectors - cable end connectors are included.
A set of dip switches is provided for each ISO output for lifting the ground connection between input and ISO output.
Rear tie-bar is provided for attaching cables securely to avoid accidental disconnects.
Use the SPC83 model when you will be providing phantom power from the mixing console and NOT from an external power supply.
A loop through feature on the phantom connection allows a single DCSP1 to provide phantom power to multiple units, limited only by total current draw of up to 500mA.
