Product Overview

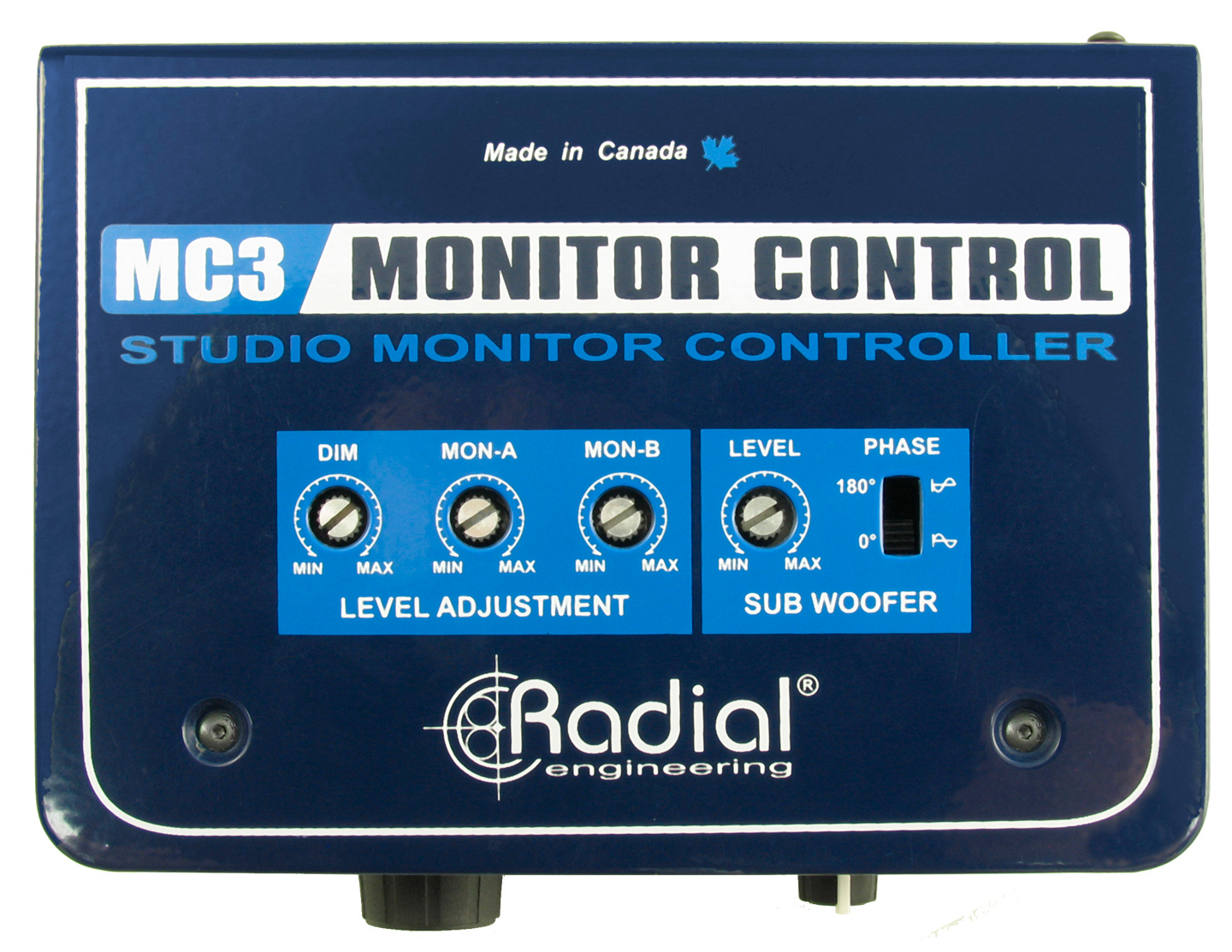

When you're mastering your tracks, you need to hear your product in as many monitors as possible. The Radial MC3 monitor controller is a studio tool that enables the engineer to quickly select between reference monitors, sub woofer or headphones and compare how the mix translates via various playback systems. Unique to the MC3 is the ability to quickly sum mono for AM radio compatibility.

And while most monitor switchers are active the MC3 is 100% passive. This means that unlike active switchers that introduce a buffered electronic circuit in between your recording system and monitors, the MC3 delivers straight wire performance. This eliminates coloration and distortion for more accurate monitoring.

The MC3 features an easy access level control that lets you quickly set playback levels on all speakers. Each output is equipped with a top-mount "set & forget" dial to fine tune outputs for the ideal balance. The sub is augmented with a 180 degree polarity reverse to help deal with room modes that may cause a frequency bump in the mix position. A separate Dim switch is also adjustable to enable the engineer to temporarily drop the playback level without affecting the mix level settings. To address the ever increasing popularity of ear buds, the Radial MC3 is equipped with a built-in headphone amplifier with stereo 3.5mm (1/8" TRS) output along with two standard 1/4" headphone phone outs to share. The MC3 may be configured for either balanced or unbalanced setups.

For the audio engineer mastering their tracks, the ability to easily switch between monitors is crucial. You need to get the MC3 today and save time in the studio!

Applications

  • Switching between two sets of monitors
  • Auditioning mixes with and without the added bass of a subwoofer
  • Using as a basic audio router for applications such sending a stereo signal to two rooms, such as between the living room and kitchen at home or two zones in a restaurant.

Features

  • Passive studio monitor switcher with headphone amp
  • Control two sets of monitors and sub woofer
  • Mono sum for AM radio compatibility and phase check
  • Individual "set & forget" controls to fine tune levels
  • Switch between two pairs of monitors with or without a subwoofer, plus three pairs of headphones at once

Specifications

  • Audio Circuit Type: Passive stereo signal path with active sub and HP
  • Frequency Response: DC ~ 20 kHz (0 dB / -1 dB)
  • Dynamic Range: 114 dB
  • Total Harmonic Distortion: 0.001% @ 1 kHz, 0 dBu output
  • Intermodulation Distortion: 0.001% @ 1 kHz, 0 dBu output
  • Input Connectors: 2 x 1/4" TRS inputs
    • Input Impedance: 4.4 kΩ balanced, 2.2 kΩ unbalanced
  • Output Connectors:
    • 4 x 1/4" TRS monitor outputs
    • Aux and mono subwoofer outputs
    • 2 x 1/4" headphone jacks
    • 1 x 1/8" TRS headphone jack
    • Output Impedance: Varies with level adjustment
  • Common Mode Rejection Ratio (CMRR): -51 dB @ 55 Hz
  • Noise:
    • Stereo: -108 dBu
    • Sub: -95 dBu
    • Headphone: -87 dBu
  • Features: Trim level control for DIM, Mon-A, Mon-B, and sub outputs; variable dim attenuation up to -72 dB
  • Construction: 14-gauge steel chassis and outer shell
  • Power: +15VDC/400mA adapter included / 110V
  • Conditions: For use in dry locations only, 5-40°
  • Dimensions (H x W x D): 2" x 5" x 3.3"
  • Weight: 1.32 lbs (0.6 kg)
