Yamaha IF3115/95W YI 15" 3-Way Speaker 90x50 Degree Rotatable Dispersion, White

OUR PART #: IF3115/95W-YI MFR #: IF3115/95W-YI

Copied to clipboard

Yamaha Installation Series Loudspeakers Note: Shown in black. Actual product color is white. ...Read more

Yamaha IF3115/95W YI 15" 3-Way Speaker 90x50 Degree Rotatable Dispersion, White Image 1
Yamaha IF3115/95W YI 15" 3-Way Speaker 90x50 Degree Rotatable Dispersion, White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Yamaha Installation Series Loudspeakers

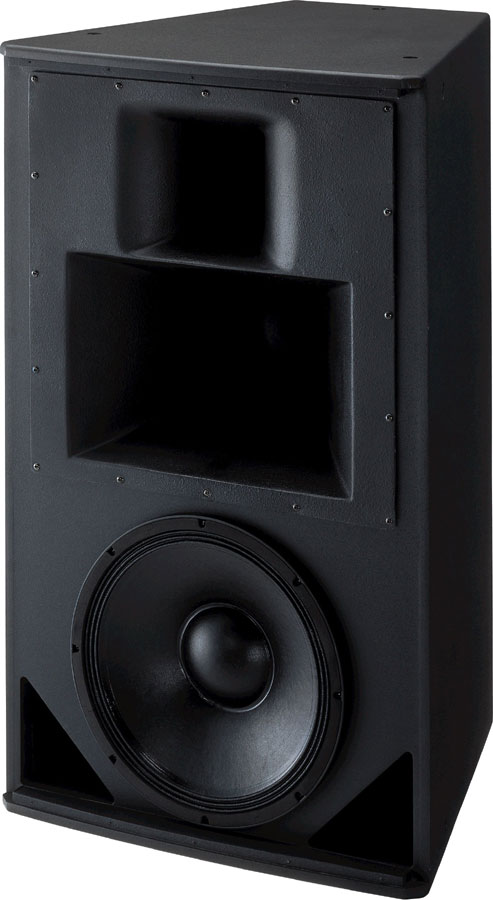

Note: Shown in black. Actual product color is white.

The Installation Series provides a wide range of models with seamlessly integrated hardware to meet the expectations of contractors and end-users for audio quality, ease of installation, and system design. All models feature a phase differential of less than 90 at 2 kHz . This minimizes the reduction of sound level and unwanted coloration in the "overlapped" area when combining/arraying speakers. The overall effect on frequency response is held to a minimum, ensuring a consistent family sound of speakers.

Features:

  • Ideal for medium to large-scale installations.
  • Uniform phase response throughout the entire series.
  • A wide selection of dispersion characteristics for long-range, shortrange, and long/short range use.
  • Standard U-bracket and array-frame hardware available for maximum installation convenience and efficiency.
  • Switchable single-amp and bi-amp drive modes.
  • Certified measurement and prediction EASE data. Including polar plots, CAD files, and DXF data.
  • Constructed of high strength premium 11-ply / 5/8 inch-thick Finland Birch enclosures on most models.
  • Grilles have 63% transparency for better clarity of sound.
  • Speakers include a barrier-strip and NL4 Neutrik* with parallel connections.
  • Horns are manufactured from fiber-reinforced plastic to minimize unwanted resonance.
  • The entire line of speakers incorporates rotatable horns, when space consideration dictates the speakers orientation.
  • High frequency drivers feature one-piece titanium diaphragms formed to precision tolerances for high performance, endurance and superior sonic quality.
  • Side handles (new feature)

Specifications:

  • See Document tab above for more specifications.
