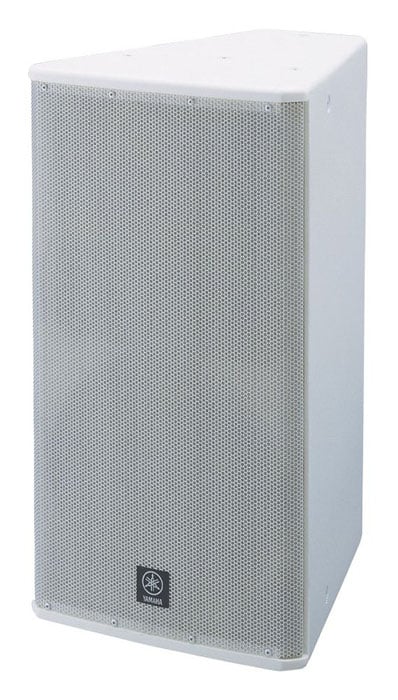

Yamaha IF2112/64W
12" 2-way Speaker, 60 x 40 Degrees Rotatable, White

OUR PART #  IF2112/64W-YI

Call for info!


Recommended Accessories

The IF2112/64W is a 12" 2-way speaker with a 60 degree x 40 degree rotatable coverage pattern and white paint finish.

The Installation Series provides a wide range of models with seamlessly integrated hardware to meet the expectations of contractors and end-users for audio quality, ease of installation, and system design. All models feature a phase differential of less than 90 at 2 kHz . This minimizes the reduction of sound level and unwanted coloration in the overlapped area when combining/arraying speakers. The overall effect on frequency response is held to a minimum, ensuring a consistent family sound of speakers.

Selected Features:

  • Ideal for medium to large-scale installations.
  • Uniform phase response throughout the entire series.
  • A wide selection of dispersion characteristics for long-range, shortrange, and long/short range use.
  • Standard U-bracket and array-frame hardware available for maximuminstallation convenience and efficiency.
  • Switchable single-amp and bi-amp drive modes.
  • Certified measurement and prediction EASE data. Including polar plots, CADfiles, and DXF data.
  • Constructed of high strength premium 11-ply / 5/8 inch-thick Finland Birchenclosures on most models.
  • Grilles have 63% transparency for better clarity of sound.
  • Speakers include a barrier-strip and NL4 Neutrik with parallelconnections.
  • Horns are manufactured from fiber-reinforced plastic to minimize unwantedresonance.
  • The entire line of speakers incorporates rotatable horns, when spaceconsideration dictates the speakers orientation.
  • High frequency drivers feature one-piece titanium diaphragmsformedtoprecision tolerances for high performance, endurance and superiorsonicquality.

Specifications:

  • Frequency Response: 65 Hz-20k Hz (Bi-amp mode)
  • Frequency Range: 50 Hz-20k Hz (Bi-amp mode)
  • Nominal Coverage (H xV. -6dB): 60°x 40°
  • Power Rating: Passive – 600 W (EIA) ; Bi-Amp – LF: 700W (AES) HF: 80 W(AES)
  • Nominal Impedance: Passive – 8 ohms; Bi-Amp – LF: 8 ohms HF: 8 ohms
  • Sensitivity (1 W @ 1 m): Passive – 96 dB SPL; Bi-Amp – LF: 96 dB SPL HF:110 dB SPL
  • Calculated Peak SPL: Passive – 130 dB SPL; Bi-Amp – LF: 130 dB SPL HF: 135dB SPL
  • Calculated Continuous SPL: Passive – 124 dB SPL; Bi-Amp: 124 dB SPL HF:129 dB SPL
  • LF Component: 12" Woofer, 4" Voice Coil
  • HF Component: Rotatable Constant Directivity Horn, 1.4"exit, 3" Voice CoilCompression Driver
  • Dimensions (h x w x d): 27.4 x 14.9 x 17.9 in
  • Weight: 61 lbs.
  • Shape: 30° Trapozoidal
  • Material: 5/8" 11-ply Finland Birch
  • Finish: White
  • Grill: 14 gauge powder coated perforated steel grilles, backed withacoustically transparent reticulated foam
  • Connectors: 1x Neutric NL4 and barrier strip, wired in parallel
  • Suspension Points: 15x M10; 4x M8
  • U-Bracket: UB2112(W)
