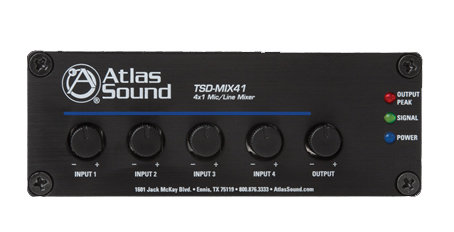

Atlas Sound TSD-MIX41
Mixer 4 Channel mic/line

OUR PART #:  TSD-MIX41

The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed.
Learn More
Our Price: $185.99
List Price: $232.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound TSD-MIX41
Qty:
In Stock

Similar Products

The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel. The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with Atlas Sound amplifiers. Other applications include restaurants, conference rooms, and schools.

Each input is mic/line switchable with phantom power provided for condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.

Features:

  • Four (4) Balanced Mic/Line Inputs
  • Four (4) Professional Grade Microphone Preamps with Switchable
  • 24V Phantom Power
  • Up to 50dB Mic Gain Per Input
  • 12dB/Octave Low Cut Filter @ 125Hz
  • Balanced Line Output
  • Input Peak & Signal Indicator LED's
  • Variable Output Limiter
  • High Gain Output for Driving Long Balanced Lines
  • Separate Ground Connections
  • Removable Phoenix Style I/O Connectors
  • Security Covers Included for All Front Panel Controls
  • Meets Energy Star Standards

Specifications:

  • Input Impedance: 1.2KO Balanced, 600O Unbalanced
  • Phantom Power: 24VDC Defeatable
  • Low Cut Filter: 125Hz/12dB Defeatable
  • Line Input Level: 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
  • Mic Input Level: 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dbV) Balanced Output
  • Output Impedance: 300O Balanced, 150O Unbalanced
  • Line Output Level: 1V (0dBV) In = 2V (+6dBV)
  • Frequency Response: 20Hz - 20kHz (+/-1dB)
  • THD: .06% & 1kHz
  • Signal to Noise Ratio Line to Line: 85dBV
  • Signal to Noise Ratio Mic to Line: 78dBV
  • 24VDC Power Requirements: 60mA
  • Dimensions:
      -  Height 1.5" (3.81 cm)
      -  Width 4" (10.16 cm)
      -  Depth 2.5" (6.35 cm)
  • Weight 6oz., .165kg
