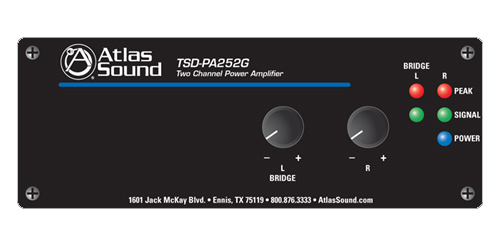

Atlas Sound TSD-PA252G
Power Amp, Stereo 25W

OUR PART #:  TSD-PA252G

The Atlas Sound TSD-PA252G is a reliable, cost effective 4O stereo amplifier well suited for higher power amplification requirements.
Learn More
Our Price: $229.99
List Price: $286.99
You save 20%!
Write the first review.
Atlas Sound TSD-PA252G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Atlas Sound TSD-PA252G is a reliable, cost effective 4O stereo amplifier well suited for higher power amplification requirements. Output is 25W per channel at 4O or 50W bridge mono at 8O. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.

Atlas Sound TSD-PA252G Features:

  • 25W per Channel into 4O
  • 50W Bridged into 8O
  • Two (2) Balanced Inputs
  • Dual RCA Inputs

Atlas Sound TSD-PA252G Specifications:

  • Power Output:
    • 12W @ 8O x 2 CH
    • 25W @ 8O x 2 CH
    • 24W @ 4O x 2 CH
    • 50W @ 8O Bridged
  • Unbalanced Input Impedance: 10KO
  • Input Level: 316mV (-10dBV)
  • Balanced Input Impedance: 10KO Balanced, 5KO Unbalanced
  • Line Input Level: 500mV (-6dBV) Balanced
  • Frequency Response: 20Hz - 20kHz (+/-3dB)
  • THD: .2% & 1kHz
  • Signal to Noise Ratio: 80dBV
  • 24VDC Power Requirements: 500mA
  • Dimensions (HxWxD): 1.5" x 4" x 5.2" (3.81 x 10.16 x 13.2 cm)
