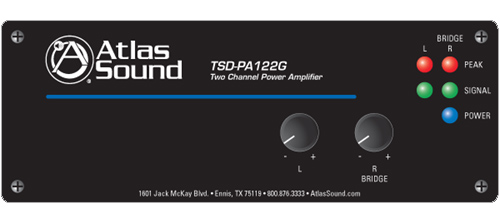

Atlas Sound TSD-PA122G
Power Amp Stereo 12W


The Atlas Sound TSD-PA122G 4O stereo amplifier is perfectly suited for almost any general amplification requirement.
Learn More
Our Price: $181.99
List Price: $226.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Atlas Sound TSD-PA122G
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound TSD-PA122G 4O stereo amplifier is perfectly suited for almost any general amplification requirement. Perfect for adding sound reinforcement to small projector systems as it provides ample power to drive up to four 8O loudspeakers in a classroom or boardroom application. Output is 12W per channel at 4O or 24W bridged mono at 8O. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.

Atlas Sound TSD-PA122G Features:

  • 12W @ 4O x 2 Channels
  • Bridgeable to 24W at 8O Mono Output
  • Balanced Stereo Inputs
  • Unbalanced Stereo Inputs Via Dual RCA Connectors
  • Input Signal & Peak Indicator LED's
  • Removable Phoenix Style I/O Connectors
  • Security Covers Included for All Front Panel Controls
  • Meets Energy Star Standards

Atlas Sound TSD-PA122G Specifications:

  • Power Output:
    • 12W @ 4O x 2 CH
    • 6W @ 8O x 2 CH
    • 24W @ 8O Bridged
  • Unbalanced Input Impedance: 10KO
  • Input Level: 316mV (-10dBV)
  • Balanced Input Impedance: 10KO Balanced, 5KOUnbalanced
  • Line Input Level: 500mV (-6dBV) Balanced
  • Frequency Response: 20Hz - 20kHz (+/-3dB)
  • THD: 1% & 1kHz
  • Signal to Noise Ratio: 80dBV
  • 24VDC Power Requirements: 500mA
  • Dimensions (HxWxD): 1.5" x 4" x 2.5" (3.81 x 10.16 x6.35 cm)
  • Weight: 6oz. (0.165kg)
