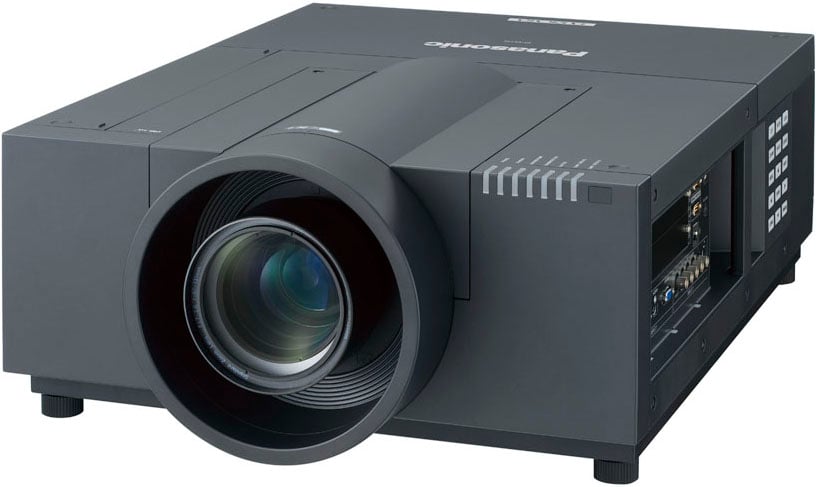

Panasonic PT-EX12K
13,000 Lumens XGA 2-Lamp LCD Projector

OUR PART #  PTEX12KU

Call for price! Not available online.


Recommended Accessories

Panasonic's PT-EX12K's 2-Lamp Optical System uses high-output, 380 W UHM lamps to produce high brightness of 13,000 lm.  Contrast is also high at 4,000:1.

Excellent Colors with Pure Color Control

It is inherently difficult for LCD projectors to attain both high brightness and superb color reproduction. For this reason, in addition to the three conventional LCD panels that control the light intensity for the red, blue and green primary colors, the PT-EX16K/EX12K also features a Pure Color Control function that independently controls the light intensity of yellow coloring. This provides rich overall color expression while maintaining brightness.

Basic Concept of the Pure Color Control

The use of a full 10-bit image processing system provides smooth tonal expression.  For example, skin tones appear natural and true to life.

The Multi-Lamp Optical System Enables Stable, Extended Operation

Even if one lamp goes out during use, the other lamps continue, so projection is not interrupted.  Lamp Relay mode also allows long-time, continuous operation.

file:///C:/Documents%20and%20Settings/chrisa/My%20Documents/P/Panasonic/PT-EX12K-table.jpg

Highly Durable Optical Engine Ensures Excellent Long-Time Image Quality

The LCD panels and polarizers inside the LCD projector's optical block tend to degrade over time.  Their degradation adversely affects image quality.  Inorganic materials are used for the LCD panels, and for the polarizers that are prone to degradation, to resist time-related changes in the optical block, therefore achieving a replacement cycle of up to 10,000 hours.
Long-Lasting Eco Filter with User-Friendly Maintenance

The PT-EX12K features the Eco Filter, which efficiently captures dust and requires no replacement for up to 12,000 hours.*  It consists of Micro Cut Filters** that use an ion effect to collect extremely small dust particles.  These large-surface, pleated filters have a high dust collecting performance.  In addition to its long replacement cycle, the Eco Filter can be washed with water*** for repeated use, further increasing its ecological performance.  The Eco Filter can also be removed through the top panel of the projector, enabling filter replacement on ceiling-mounted projectors without having to detach the projector from its mounting bracket.
*With the lamp power set to Normal. The usage environment affects the duration of the filter.
**Electrostatic filters.
****When washing with water, please follow the procedures listed in the operating instructions.  Also, Panasonic recommends replacing the filter with a new one after it has been washed and reused twice.  If the filter is not sufficiently clean after washing, replace it with a new one.

Horizontal/Vertical Lens Shift Function and a Variety of Lenses

Both zooming and focusing can be done by remote control.  The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation.  You can also choose from a wide variety of lenses, from short or long focus zoom lenses to a fixed focus lens for rear projection.  This makes it possible to install the projector in a variety of locations.

A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.

The projector can be rotated 360° vertically for flexible installation. This allows projection from directly above or below, for exciting visual possibilities in art galleries, theaters and showrooms.

Corner Keystone Correction Enables Angled Projection

All you need to do is designate four points as the corners of the projected image, and this function automatically carries out horizontal and vertical keystone correction.

Multi-Screen Support System Seamlessly Connects Multiple Screens

The Multi-Screen Support System optimally adjusts multiple screens:
  • Edge Blending: The edges of adjacent screens can beblended and their luminance controlled.
  • Color Matching: This function corrects for slightvariations in the color reproduction range of individual projectors.
Multi-Screen Support System Seamlessly Connects Multiple Screens

Versatile Interfaces and Illuminated Terminals and Control Panel

The wide-ranging terminals include 2 sets of RGB inputs*, an HDMI input, and a DVI-D input.  Mounting the optional Interface Board ET-MD16SD1 also accommodates HD/SD-SDI signal input.  The terminal connection area is LED illuminated, and a backlight is provided for the control panel buttons, ensuring smooth and easy operation in the dark.
*One set supports YPBPR (YCBCR) signals.


The Mechanical Shutter lets you mechanically block the light to completely blackout the screen, and prevents light leakage from the lens.  When closing the shutter, the projection image gradually fades out, then gradually fades in when opening, which brings more attractive stage effects.

Easy Remote Control and Observation

A web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status.

In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.

The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.

Web Browser Control/Monitoring, PJLink™ Compatibility

Basic Concept of the Multi Projector Monitoring and Control Software


The PT-EX12K's lamp can be reached through the top panel for easy replacement.  This eliminates the need to detach the projector from its mounting bracket in ceiling-mounted applications and greatly simplifies maintenance.

Other Features:
  • Direct Power Off allows the power cord to be unplugged rightafter use.
  • Wireless and wired remote control that allows the allocationof up to 64 IDs.
  • Logo Transfer Software* lets you upload any startup logo youwant.
    *Still images that can be uploaded are limited to 1,024 x 768 pixelbitmap files.  Also, the application reduces the number of colors to191.

Specifications:

  • Power supply: 200-240 V AC, 50/60 Hz
  • Power consumption: 1,850 W (18 W with standby mode)  940 W (17 Wwith standby mode)
  • LCD panel:
    Panel size: 46 mm (1.8 inches) diagonal (4:3 aspectratio)
    Display method: Transparent LCD panel (x 3,R/G/B)
    Pixels: 786,432 (1,024 x 768) x 3, total of 2,359,296pixels
    Pixel configuration: Stripe
  • Pure color control device: 1
  • Lens: Optional
  • Lamp: 380 W x 2, lamp replacement cycle
    (lamp power: Normal/Eco1,Eco2): 2,000 hours/3,000 hours*
    *The values given for the recommended lampreplacement cycles are maximum.
  • Screen size (diagonal): 1.02–15.24 m (40"–600") (2.54–15.24 m[100"–600"] with the ET-ELS03), 4:3 aspect ratio
  • Brightness**: 13,000 lm (2-lamps, lamp power: Auto/Normal, Optionallens: ET-ELS03)
  • Center-to-corner uniformity**: 90 %
  • Contrast**: 4,000:1 (full on/full off, 2-lamps, lamp power:Auto)
    **Measurement, measuring conditions, and method of notation allcomply with ISO 21118 international standards.
  • Resolution: 1,024 x 768 pixels (Input signals that exceed thisresolution will be converted to 1,024 x 768 pixels.)
  • Scanning frequency:
    HDMI/DVI-D: Horizontal: 26–80 kHz, vertical:23–85 Hz, dot clock: 162 MHz or lower
    RGB (analog): fH: 15–120 kHz,fV: 48–120 Hz, dot clock: 230 MHz or lower (Signals exceeding the dot clockrate of 165 MHz are downsampled.)
    YPBPR (YCBCR): fH: 15.75 kHz, fV: 60Hz [480i (525i)]
    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 45.00 kHz,fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1035/60i]
    fH: 28.13kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 28.13 kHz, fV: 50 Hz[1080/25sF]
    fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
    fH: 33.75 kHz, fV: 60Hz [1080/30sF]
    fH: 56.25 kHz, fV: 50 Hz [1080/50p]
    fH: 15.63 kHz, fV: 50Hz [576i (625i)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz,fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH:28.13 kHz, fV: 25 Hz [1080/25p]
    fH: 27.00 kHz, fV: 24 Hz [1080/24p]
    fH:33.75 kHz, fV: 30 Hz [1080/30p]
    fH: 67.50 kHz, fV: 60 Hz[1080/60p]
    Video/S-Video: fH: 15.75 kHz, fV: 60 Hz[NTSC/NTSC4.43/PAL-M/PAL60],
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift:
    With the ET-ELW06: vertical ±39% from center ofscreen (powered)***
    ***The ET-ELW06 is equipped with only vertical opticalaxis shift.
    With the ET-ELW02/ELW04/ELS03/ELM01/ELT02/ELT03: vertical ±39%,horizontal ±10% from center of screen (powered)
    With the ET-ELS02: vertical±50%, horizontal ±10% from center of screen (powered)
    With the ET-ELW03:the optical lens shift function cannot be used.
  • Keystone correction range: Vertical: Maximum ±40°, Horizontal:Maximum ±40° (with XGA signal input, for vertical/horizontal correction only,Optional lens: ET-ELS03)
  • Installation: Ceiling/floor, front/rear
  • Terminals:
    INPUT1:
    - DVI-D IN  DVI-D 24-pin x1 (DVI 1.0compliant, compatible with HDCP, compatible with single link only), 480p,576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1035/60i, 1080/24p, 1080/24sF,1080/25p, 1080/25sF, 1080/30p, 1080/30sF, 1080/60p, 1080/50p, VGA (640 x480)–WUXGA (1,920 x 1,200)****, compatible with non-interlaced signals only,dot clock: 25–162 MHz
    - HDMI IN: HDMI 19-pin x1 (compatible with HDCP,compatible with Deep Color), 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,1035/60i, 1080/24p, 1080/24sF, 1080/25p, 1080/25sF, 1080/30p, 1080/30sF,1080/60p, 1080/50p, VGA (640 x 480)–WUXGA (1,920 x 1,200)****, compatible withnon-interlaced signals only, dot clock: 25–162 MHz
    - ANALOG IN: D-subHD 15-pin (female) x1 (RGB x1)
    ****Compliant with VESACVT-RB.
    INPUT2:
    - RGB 5BNC IN/VIDEO IN: BNC x5 (RGB/YPBPR/YCBCRx1), shared with VIDEO IN (BNC x1) (composite video)
    - S-VIDEOIN: Mini DIN 4-pin x1 (S-Video)
    INPUT3/INPUT4: Optional interfaceboard slot, When the ET-MD16SD1 is installed, SERIAL IN (SDI IN 1/2): BNC x 2(SD-SDI signal/single link HD-SDI signal)
    - SD-SDI signal (YCBCR 4:2:210-BIT): 480i, 576i (SMPTE 259M-C compliant)
    - Single-link HD-SDI signal(YPBPR 4:2:2 10-BIT): 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i,1080/25p, 1080/25sF, 1080/24p, 1080/24sF, 1080/30p, 1080/30sF (SMPTE 292Mcompliant)
    SERIAL OUT (SDI OUT): BNC x1 (active through)
    SERIALIN: D-sub 9-pin (female) x1 for external control
    SERIALOUT: D-sub 9-pin (male) x1 for link control
    REMOTE IN: M3 Jack x1(for wired remote control)
    LAN: RJ-45 x1 (for network connection,100Base-TX/10Base-T, compliant with PJLink™ [class1])
    USB: USB type-B(USB connector) x 1^
    ^This port is for use by service personnel only. TheUSB interface may not operate with all USB compatible equipment.
  • Cabinet materials: Molded plastic
  • Dimensions with legs at shortest position, optional lens not included:21.2" W x 10.6" H x 29.8" D(538.5 x 268 x 757 mm)
  • Weight: Approximately 28 kg (61.7 lbs) (optional lens not included)
  • Noise level: 42 dB (lamp power: Normal/Eco2), 39 dB (lamp power:Eco1)
  • Operating temperature: 0°C- 40°C [32°F-104°F] (less than 1,400 m [4,593ft] above sea level), 0°C- 30°C [32°F-86°F] (between 1,400 m and 2,700 m[4,593 ft to 8,858 ft] above sea level)
  • Operating humidity: 20–80 % (no condensation)
  • Supplied accessories: Power cord x1, power cord holder/power cordcover x1 set, wireless/wired remote control unit, batteries (AAA/R03/LR03 typex2), VGA cable x1, software CD-ROM (Logo Transfer Software, Multi ProjectorMonitoring & Control Software, Real Color Manager Pro.), lens attachmentx1 set, lens lock lever fixing bracket x1 set, lightshielding plate x3 set,spacer x1 set, cable tie x3

Caution: Do not install the projector in locations that are subject to excessive water, humidity, steam or oily smoke. Doing so may result in fire, malfunction or electric shock.

NOTES:

  • 1: This product must not be used in residential areas.
  • 2: This product may cause interference if used in residential areas. Suchuse must be avoided unless the user takes special measures to reduceelectromagnetic emissions to prevent interference to the reception of radioand television broadcasts.
  • 3: The projector uses a high-voltage mercury lamp under high internalpressure. This lamp may break, emitting a popping sound, or fail toilluminate, due to impact or extended use.
  • 4: The high-wattage lamp becomes very hot during operation. Please observethe following precautions:
    - Never place objects on top of the projectorwhile it is in operation.
    - Make sure there is an unobstructed space of1,000 mm (39-3/8 in) or more around the projector’s exhaust openings.
    - Ifstacking projector units, care must be taken to provide the recommended spacebetween units. These space requirements also apply to installation where onlyone projector unit is operating at one time and the other unit is used as abackup.
    - If the projector is placed in a box or enclosure, the temperatureof the air surrounding the projector must match the operating temperaturelisted in the specifications table during use. Also, make sure the projector’sintake and exhaust openings are not blocked. Ensure there is sufficientventilation to prevent hot air from the exhaust openings being recirculatedinto the intake opening.
  • 5: The lamp replacement cycle duration becomes shorter if the projector isoperated repeatedly for short periods.
    - The lamp replacement cycle variesgreatly depending on individual lamp characteristics and usageconditions.
    - The brightness of the lamp will gradually decrease with use.
  • 6: Due to natural characteristics of lamps, screen brightness mayfluctuate. This is not an indication of faulty lamp performance.
