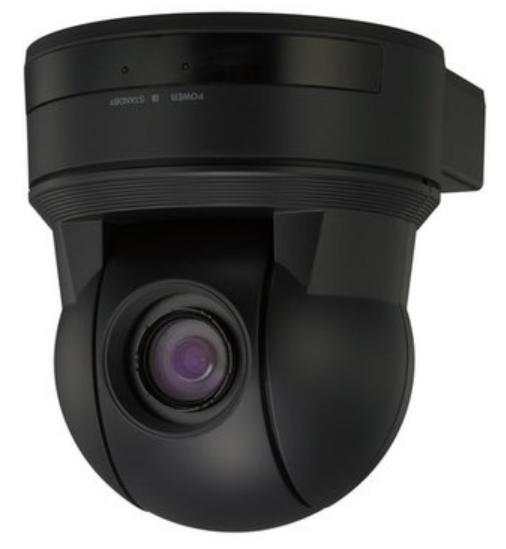

Sony EVI-D80
18x SD Pan-Tilt Zoom Color Video Camera in Black

OUR PART #  EVID80

Our Price: $818.75
List Price: $1,197.00
You save 32%! (Low Price Guarantee)
Qty:

In Stock

The EVI-D80 from Sony features 18x optical zoom, and utilizes the RS-232C/RS-422 VISCA™ protocol interface, which can allow for easy connectivity to many peripheral system devices. In addition, the new CCD and CMOS sensors offer more sensitivity than previous EVI SD cameras. With high speed pan/tilt/zoom functionality, this easy-to-use camera is an attractive addition to the EVI P/T/Z camera lineup. Best of all, this new camera is ceiling mountable, allowing for more flexible design-in options in many applications including videoconferencing, houses of worship, corporate training, and distance learning.

Sony EVI-D80 Features:

  • 18x Optical Zoom
  • Low minimum illumination
  • 550 TV Lines Resolution
  • E-flip Function
  • Ceiling Mountable
  • Image Stabilization
  • Option to choose between interlace and progressive scan mode

Sony EVI-D80 Specifications:

  • Camera:
    • Image Device: 1/4-type CCD
    • Lens Value: f= -4.1 mm (wide) to 73.8 mm (tele) F1.4 to F3.0
    • Minimum Object Distance:
      • 10 mm (wide) - 1,500 mm (tele)
      • *Default: 290 mm
    • Auto Exposure:
      • Auto, Manual, Priority Mode (shutter priority & iris priroity)
      • Bright, EV compensation, Slow Shutter AE
    • Shutter Speed: 1 to 1/10,000 s
    • Gain: Auto/Manual/Max. AE Gain Limit (-3 db to +28 dB, 2 dB steps)
    • White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
    • Pan Angle/Speed:
      • +/- 170°
      • 100°/sec
    • Tilt Angle/Speed:
      • +90°/-20°
      • 90°/sec
    • Horizontal Viewing Angle: 48.0° (wide) to 2.8° (tele)
    • Resolution Value: 550 TV Lines
    • Preset Positions: 6
  • Interface:
    • Camera Control Interface: RS-232C/RS-422 VISCA? Protocol
  • Video Output:
    • Minimum Illumination: 0.4 lx (F1.4, 50 IRE)
    • S/N Ratio: More than 50 dB
    • Video Output: VBS, Y/C
    • Signal System: SD NTSC
  • General:
    • Dimensions (W x H x D): 145 x 164 x 164 mm (5 3/4 x 6 1/2 x 6 1/2 inches)
    • Weight: 1,460 g (3 lbs., 3 oz)
    • Power Requirements: DC 12V
    • Power Consumption: 6 W
    • Operating Temperature: 0° C to 40° C (32° F to 104° F)
    • Storage Temperature: -20° C to 60° C (-4° F to 140° F)
