Philips Color Kinetics 316-000002-09

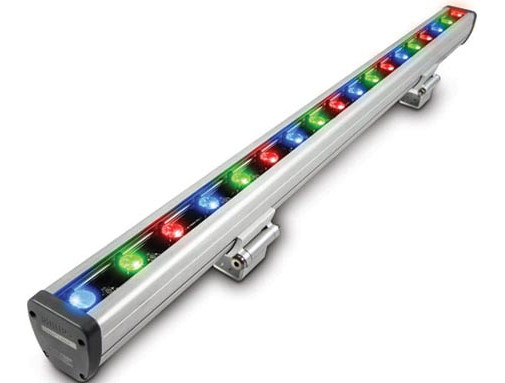

Vaya 13" W Linear Color LED Fixture with 10°x50° Beam

OUR PART #:  316-000002-09

Call for price! Not available online.

Related Products

The Philips Color Kinetics 316-000002-09 Vaya Linear Color is designed for creating fixed or dynamic colorful lighting effects and is ideal for wall washing and grazing applications.  Integrated power, DMX-512 control, and RDM discovery and addressing make this product easy to use with Philips or 3rd-party DMX / RDM controllers.

Philips Color Kinetics Vaya Linear Color Features:

  • Cost-effective, reliable LED lighting fixture
  • Auto-ranging 100V – 240V, 50 / 60Hz input
  • Interior / Exterior - IP65

Philips Color Kinetics Vaya Linear Color Specifications:

  • Dimensions including surface-mount base (HxWxL): 4" x 2.5" x 13.1" (102 x63.5 x 333 mm)
  • Weight: 3 lbs (1.3 kg)
  • Mounting: Location-adjustable and tilting surface-mount bracket
  • Source: High-brightness Red, Green and Blue LEDs
  • Beam Angle: Narrow (10°x50°)
  • Output Luminous Flux: 330 lm
  • Lumen Maintenance: 50,000 hrs L50 at 25°C
  • Housing: Extruded aluminum, anodized finish
  • Connector:  5 ft. (1.5m) long 3-conductor whip for power, 5 ft.(1.5m) long 2-Pair twisted whip for data
  • Lens: Tempered Glass
  • Control: DMX-512 control, RDM discovery and addressing, one address per fixture
  • Input Voltage: 100V – 240 VAC, 50 / 60Hz
  • Power Consumption: 41W
  • Temperature Range: -40°F to 95°F (-40°C to 35°C) operating temperature
  • Protection Rating: IP65, Wet location listed
  • Certifications: UL / cUL, FCC Class A, CE, CB
