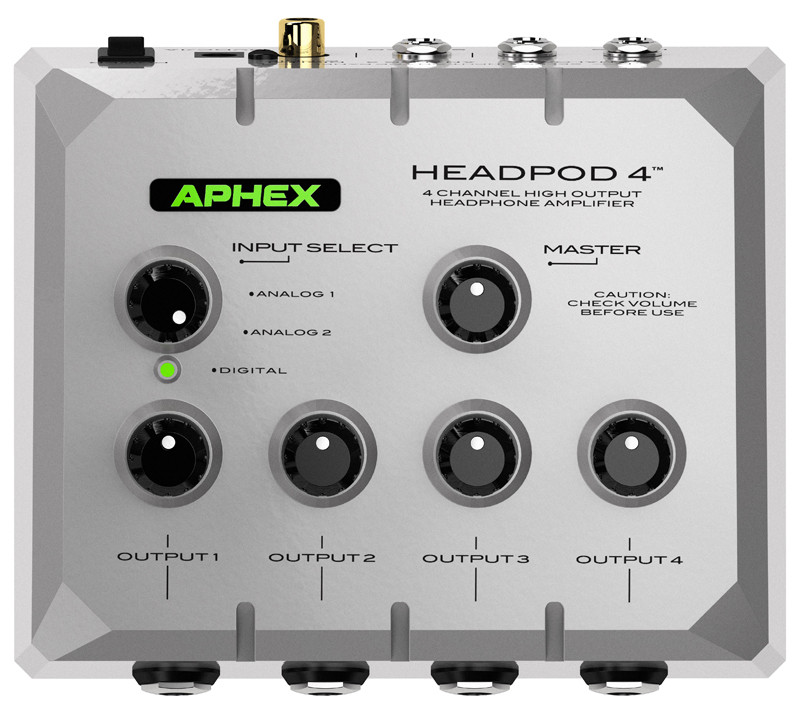

Aphex HEADPOD-4
4 Channel Headphone Amplifier

OUR PART #:  HEADPOD-4

If the headphone output on your existing gear just isn't loud and clear enough, or you need multiple headphone outputs with independent level controls...
Learn More
Our Price: $249.00
List Price: $299.00
You save 17%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Aphex HEADPOD-4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

If the headphone output on your existing gear just isn't loud and clear enough, or you need multiple headphone outputs with independent level controls, the Aphex HeadPod 4 delivers.

But the HeadPod 4 gives you more than just volume. It's designed to deliver clean, clear, undistorted sound at any level - ideal for long periods of listening without fatigue.

The input signal can be fed from separate balanced 1/4" connections, a single extension from your existing headphone output or digitally via S/PDIF. Since it places no load on your existing headphone output, your audio will actually sound better through the HeadPod 4.

Four fully independent amplifiers ensure maximum efficiency with minimum crosstalk and distortion, even when all four outputs have completely different sets of headphones connected. Housed in a rugged, metal chassis, the HeadPod 4 is ready for any environment from the desktop to the rehearsal room, with its optional mic stand bracket.

Whether you're a musician, audio engineer, broadcaster, or just tired of old, tired headphone outputs, the HeadPod is for you.

Aphex HEADPOD-4 Features:

  • Professional Monitoring for ALL headphone types
  • Individual volume controls
  • High headroom (no clipping at high headphone levels)
  • Durable metal jacks
  • Ultra low distortion & wide frequency response
  • Master volume to match source level
  • Ultra low crosstalk
  • Works from any analog source
  • S/PDIF Input
  • Top panel input selection
  • Listen longer with less fatigue
  • Overcomes limitations of typical headphone outputs
  • Four independent stereo power amplifiers
  • Small size travels easily

Aphex HEADPOD-4 Specifications:

  • Input Z:  Bal - 20kW; Unbal - 10kW
  • Output Z:  10W
  • Max Input Level:  +24dBu
  • Frequency Response:  10Hz – 120kHz +/- 1 dB
  • SNR (Typical):  100 dB
  • Crosstalk dB:  -80 @ 1 kHz, -70 @ 10 kHz
  • Max Gain:  35 dB
  • THD+N, 1kHz:  <.001%, 100mW into 25W
  • SMPTE IMD:  <.001%, 100mW into 25W
  • Weight:  16 oz. (0.45kg)
  • Dimensions:  5.5? W x 1.9? H x 4.5? D (13.8cm W x 4.8cm H x 11.4cm D)
  • External Power:  12 VDC, 1000mA, 5.5mm x 2.1mm Power Jack, Positive Tip
