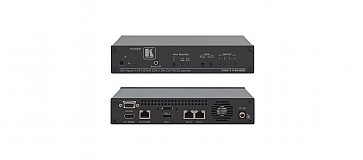

Kramer VM114H2C
2x 1:4 HDMI Twstd Pair Switcher

OUR PART #:  VM114H2C

Kramer's VM-114H2C is a high-performance switcher and distribution amplifier for HDMI and DGKat™ twisted pair signals.
Learn More
Our Price: $1,080.00
List Price: $1,350.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM114H2C
Qty:
In Stock

Similar Products

Kramer's VM-114H2C is a high-performance switcher and distribution amplifier for HDMI and DGKat™ twisted pair signals. It reclocks and equalizes one of two selectable input signals (HDMI or DGKat twisted pair) and distributes it to two DGKat twisted pair and two HDMI outputs.

Kramer VM114H2C Specifications:

  • Max data rate - 2.25Gbps bandwidth per graphic channel (HDMI), 1.65Gbps bandwidth per graphic channel (DGKat).
  • HDTV compatible
  • HDCP compliant
  • DGKat signal integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted paircables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
  • Inputs - 1 HDMI & 1 DGKat twisted pair on an RJ-45 connectors.
  • Outputs - 2 HDMI, 2 DGKat twisted pairs on RJ-45 connectors.
  • I-EDIDPro Kramer intelligent EDID processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • HDMI support - HDMI (V.1.4 with x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD (only on the TP inputs and outputs)).
  • 3D pass-through
  • Kramer equalization & re-Klocking technology - Rebuilds the digital signal to travel longer distances
  • System range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft)at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
  • Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or BC-DGKat7a23 cables.Note that the transmission range depends on the signal resolution, source device and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7cables may not reach these ranges. Use only shielded cable where both ends ofthe shield are soldered to ground.
  • Active input & output LED indicators
  • Compatible transmitters/receivers - Transmitters: PT-571, TP-573, TP-577; Receivers: PT-572, TP-575, TP-576, TP-577.
  • Power connector system - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of eachother.
  • Flexible control options - Front panel buttons, RS-232, infrared control sensor, remote included.
  • Desktop size - Compatible with RK-1 19-inch adapter for mounting multiple desktop and/or MultiTOOLS models into a 1U rack space
