4.5" Deep Back Floor Box, Dual Door, 2-gang, Gray Trim


FSR introduces a new line of Raised Access Floor Boxes designed for flexibility, durability and style.
Learn More
Our Price: $270.27
List Price: $273.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

FSR introduces a new line of Raised Access Floor Boxes designed for flexibility, durability and style. To safely handle the rigors of a floor environment, the RFL Series is constructed entirely of steel, including the carpet rim.

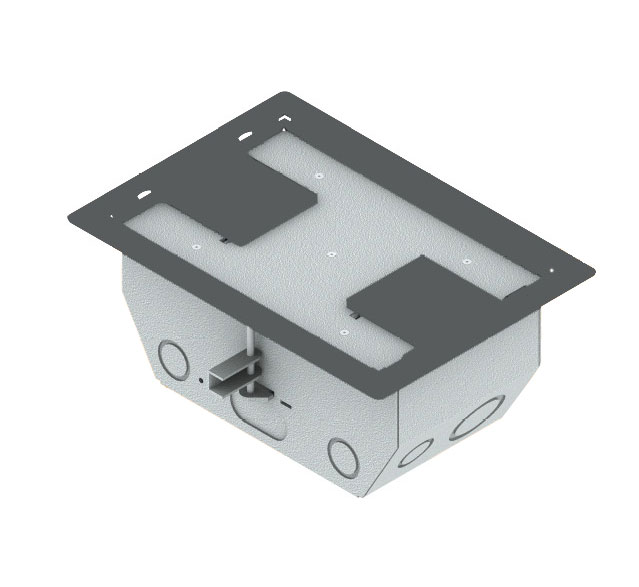

The RFL4.5-D2G-SLGRY is a 4 11/16" deep floor box with two standard double gang openings on opposite sides of the box. Either or both of the compartments may be used for power or data. With this unit the carpet rim and cable exit box comes in gray.


Anywhere a raised floor box is required to have a nicely finished appearance while still being budget minded.


  • Patented epoxy wrinkle powder finish
  • Dual-door cover styles
  • 14-gauge steel construction
  • Cover thickness 3/16"
  • Oversize cable door(s)
  • Standard electrical plate openings
  • Superior mounting clamp design to handle a wide
    variety of floor thicknesses
  • Listed by UL to meet US and Canadian safety
  • Large multi-compartment boxes for power,
    audio, video, data and more!


  • Box Volume (Less Panels) 169 cu in.
  • Device Compartment Volume 39 cu in.
  • Brackets Includes - 2 Double Gang
  • Number and Size of Knockouts
  • 2 - .5” on the bottom
  • 6 - .5” - .75” on the sides
  • 2 - 1” - 1.25” on the sides
  • 3 - 1” x 2” oval on the sides
  • Cover Material - 16/14 ga Steel under 11 ga Steel Support
  • Support flange Material - 14 g galvanized Steel
  • Max No of Insert Brackets - 2-double gang (Provided)
