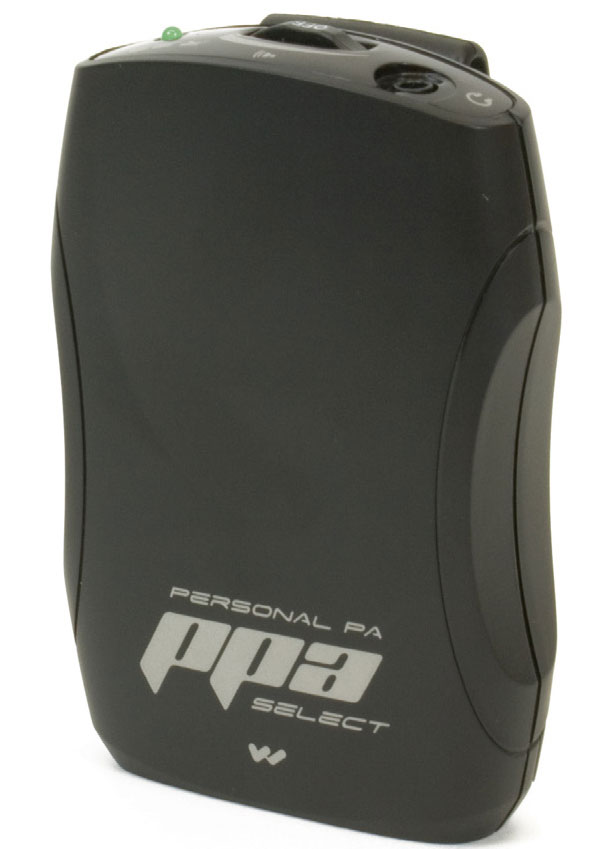

Williams Sound PPA-R37-HD
PPA-R37 w/Batteries and HED-021 Headphone

OUR PART #  PPA-R37-HD

Our Price: $111.00
List Price: $123.00
You save 10%! (Low Price Guarantee)
In Stock

Recommended Accessories

Flexible and Simple. The new PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76MHz. Digitally synthesized for even greater audio clarity and stability, the PPA Select also offers channel-lock capability (to prevent accidental channel change) and a battery-saving Sleep Mode. A versatile 1/8" stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped and hearing aid compatible.

SPECIFICATIONS

  • Dimensions: 4.1" x 2.85" x 1.38"
  • Weight: 4.6oz with batteries, 2.6oz without batteries
  • Color: Black
  • Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs // (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
  • Current Consumption: 52mA nominal
  • Temperature Range: 32ºF - 122ºF
  • Channels: 17, accessed via seek button in battery compartment
  • Operating Frequency: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
  • Intermediate Frequency: 75kHz
  • FM Deviation: 75kHz
  • De-Emphasis: 75µS
  • LED Indicator: Power: Green // Low Battery: Red
  • AFC Range: +/-120kHz
  • Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
  • Input Overload: 100mV
  • Frequency Response: 200Hz - 15kHz
  • Modulation: FM, +/- 75kHz peak deviation
  • Signal-to-Noise Ratio: 65dB @ 100uV
  • Recieve Antenna: Integral with earphone/headphone cord
  • Audio Output: 35mW max, peak into 16 ohms
  • Output Connector: 1/8" mono phone jack
  • Earphone: Earbud-type with foam cushion, 1/8" plug
  • Auto Shut-off: Enters sleep mode after approximately 6 minutes of no RF signal
  • Approvals: FCC, Industry Canada, RoHS, WEEE
Large Heavy Duty CaseWilliams Sound CCS-042 Large Heavy Duty Case

Large Heavy-duty Carry Case with pluck foam. For receiver / transmitter / accessory storage. Holds up to 48 PPA R37 and / or PPA R35-8 receivers. 21-1/2" x 17-1/2" x 8-1/2". 12.20 lbs.Compatible with: PPA R35-8N - Personal PA® FM ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$229.60List Price: $328.00You save 30%!

Click to download

Williams Sound PPA-R37-HD
PPA-R37 w/Batteries and HED-021 Headphone

OUR PART #  PPA-R37-HD

Product Videos:

Product Information:

Flexible and Simple. The new PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76MHz. Digitally synthesized for even greater audio clarity and stability, the PPA Select also offers channel-lock capability (to prevent accidental channel change) and a battery-saving Sleep Mode. A versatile 1/8" stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped and hearing aid compatible.

SPECIFICATIONS

  • Dimensions: 4.1" x 2.85" x 1.38"
  • Weight: 4.6oz with batteries, 2.6oz without batteries
  • Color: Black
  • Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs // (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
  • Current Consumption: 52mA nominal
  • Temperature Range: 32ºF - 122ºF
  • Channels: 17, accessed via seek button in battery compartment
  • Operating Frequency: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
  • Intermediate Frequency: 75kHz
  • FM Deviation: 75kHz
  • De-Emphasis: 75µS
  • LED Indicator: Power: Green // Low Battery: Red
  • AFC Range: +/-120kHz
  • Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
  • Input Overload: 100mV
  • Frequency Response: 200Hz - 15kHz
  • Modulation: FM, +/- 75kHz peak deviation
  • Signal-to-Noise Ratio: 65dB @ 100uV
  • Recieve Antenna: Integral with earphone/headphone cord
  • Audio Output: 35mW max, peak into 16 ohms
  • Output Connector: 1/8" mono phone jack
  • Earphone: Earbud-type with foam cushion, 1/8" plug
  • Auto Shut-off: Enters sleep mode after approximately 6 minutes of no RF signal
  • Approvals: FCC, Industry Canada, RoHS, WEEE
Large Heavy Duty CaseWilliams Sound CCS-042 Large Heavy Duty Case

Large Heavy-duty Carry Case with pluck foam. For receiver / transmitter / accessory storage. Holds up to 48 PPA R37 and / or PPA R35-8 receivers. 21-1/2" x 17-1/2" x 8-1/2". 12.20 lbs.Compatible with: PPA R35-8N - Personal PA® FM ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$229.60List Price: $328.00You save 30%!

Click to download
