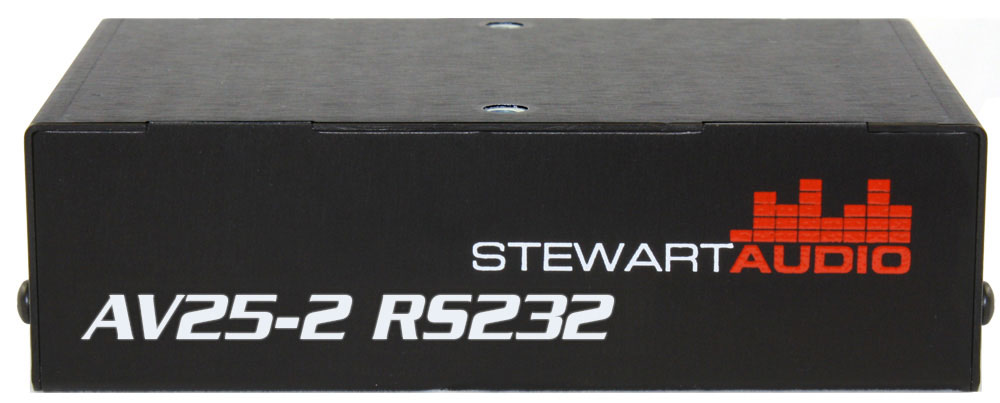

Stewart Audio AV25-2 RS232
25W Sub Compact 2 Channel Amplifier with RS232

OUR PART #:  AV-25-2-RS232

The Stewart Audio AV25-2 RS232 is a 2 channel subcompact amplifier with RS232 control - 25W x 2 @ 8 Ohm.
Learn More
Our Price: $239.00
List Price: $289.00
You save 17%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Stewart Audio AV25-2 RS232
In Stock

Similar Products

The Stewart Audio AV25-2 RS232 is a 2 channel subcompact amplifier with RS232 control - 25W x 2 @ 8 Ohm.

The sub compact AV25-2 RS232 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV25 allows amplification to be located in places off limits to normal amplifiers without compromising sound or power. Like all Stewart products, the AV25 is designed for sonic accuracy, high efficiency and extended duty cycles.

Stewart Audio AV25-2 RS232 Features:

  • RS232 control over volume
  • Clean full-range dynamic power
  • Multiple mounting options
  • External inline power supply

Stewart Audio AV25-2 RS232 Specifications:

  • 4 Ohm Stereo Power: 35W
  • 8 Ohm Stereo Power: 25W
  • Frequency Response (+0, -3dB, 1W): 30Hz - 20kHz
  • Power Bandwidth (+3, -3 dB): 30Hz - 30kHz
  • THD+N: <.1% @ Full Power
  • Signal to noise ratio: >100dB
  • Slew Rate: 30V/microsecond
  • Input Sensitivity: .5V (-6 dBV)
  • Standard Voltage Gain: 28X (26.5dB)
  • Input Impedance (Balanced/Unbalanced): 20k Ohm / 10kOhm
  • Standby, Idle Current Draw, 1/8 Power Draw:0.005/0.01/0.15 Amps)
  • Class: D
  • Input Connectors: Euro Block
  • Output Connectors: Euro Block
  • Power Supply: External in-line 48VDC (Included)
  • Cooling: Convection-Cooling (No fans)
  • Controls: Level, RS232 volume control
  • LED Indicators: Power, Signal Present, & Clip
  • Construction: Aluminum Chassis
  • Dimensions (H x W x D): 1.25 x 4.35 x 3.2"
  • Weight: <.37 lbs (0.16kg)
  • Warranty: 3 years
