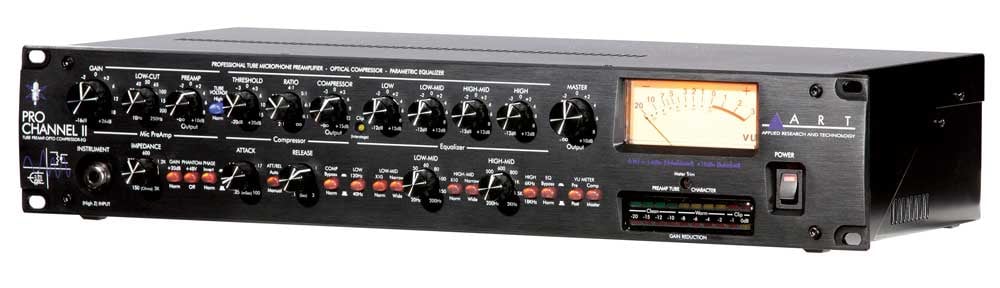

ART PRO CHANNEL II
Channel Strip

OUR PART #:  PRO-CHANNEL-II

The ART Pro Channel IIā„¢ uses second-generation discrete Class-A microphone preamp to provide clean quiet gain while maintaining incredible transparency.
Learn More
Our Price: $299.00
List Price: $379.00
You save 21%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART PRO CHANNEL II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ART Pro Channel IIā„¢ uses second-generation discrete Class-A microphone preamp to provide clean quiet gain while maintaining incredible transparency. A powerful dynamics processor subtly controls transients and noise of the most demanding sources.

The ART Pro Channel IIā„¢ 's semi-parametric EQ offers wide tune-ability and can be patched before OR after the dynamics processor. Separate rear-mounted insert points allow patching in external signal processing gear immediately after the Mic preamp and before the EQ and dynamics processor. Both analog and LED meters provide a detailed indication of audio levels.

Features:

  • Variable Input Impedance For Flexible Microphone Voicing (150 Ohms To 2400 Ohms)
  • Selectable Plate Voltage
  • Large VU Meter
  • Backlit Function Switches
  • Discrete Class-A Input Microphone Preamplifier
  • Low Noise at Lower Gain Settings
  • Extremely Low Total Harmonic Distortion (THD)
  • Wide Frequency Response
  • Additional Front Mounted Instrument Input Jack
  • Operates at +4dbm/-10dbv Output
  • Automatic Instrument Input Selection

Specifications:

  • Input Impedance:
      -  Mic: 150 to 3.4K Ohms, variable
      -  Instrument: 2.5M Ohms
      -  Preamp Insert: .5K Ohms
  • Output Impedance:
      -  Balanced Output: 600 Ohms balanced
      -  Unbalanced Output: 300 Ohms
      -  Insert Outputs: 300 Ohms
  • Frequency Response:
      -  Analog In to Analog Out: 12Hz to 100KHz +0, -1dB
      -  THD @ 1 KHz: <0.15% typical
      -  THD @ to to 20 KHz: <0.033% typical
  • Equivalent Input Noise:
      -  Mic/Line: -128dBu, Input shortened, Max gain, "A" weighted
      -  Instrument: -109 dBu, Input shortened, Max gain, "A" weighted
  • Maximum Input Level:
      -  Mic: +18dBu balanced
      -  Instrument: +15 dBu
  • Maximum Gain:
      -  Mic: 70dB (XLR to balanced output)
      -  Instrument: 64 dB (1/4" to balanced output
  • Maximum Output Level:
      -  Balanced: +24 dBu
      -  Unbalanced: +20 dBu
      -  Output Level At Meter 0 VU: +4 dBu/-10dBV
  • Preamp:
      -  Microphone Gain: 0 dB to +56 dB
      -  Instrument Gain: +3 dB to +50 dB
      -  Low Cut Filter: 0 - 250 Hz, 1-pole, 6 dB/Octave
  • EQ:
      -  Boost/Cut: +/- 12 dB on each band
      -  Low Freq. Tuning: 40 / 120 Hz Selectable
      -  MID 1 Freq. Tuning: 20 Hz to 2 KHz continuously variable
      -  MID 2 Freq. Tuning: 200 Hz to 20 KHz continuously variable
      -  High Freq. Tuning: 6 KHz / 18 KHz Selectable
  • Compressor / Limiter:
      -  Attack Time: 250 uSec. to 100 mSec.
      -  Release Time: 00 mSec to 3 Sec.
      -  Compression Ratio: 2:1 to 30:1
  • Dimensions (H x W x D - in): 3.5 x 19.0 x 9.2
  • Dimensions (cm): 8.9 x 48.3 x 23.3
  • Weight (lbs/kg): 11/5
  • Power Requirements: USA - 105 to 125 VAC/ 60 Hz (Export units configured for country of destination)
