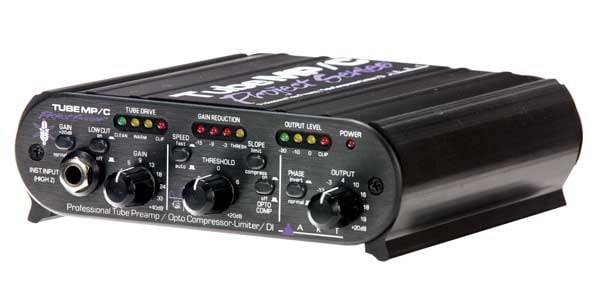

ART Tube MP/C
Tube Preamp with Compressor

OUR PART #:  TUBE-MP/C

ART's Tube MP/C (PreAmplifier/Compressor) is a multi-purpose tool for audio engineering and recording.
Learn More
Our Price: $99.00
List Price: $129.00
You save 23%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART Tube MP/C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ART's Tube MP/C (PreAmplifier/Compressor) is a multi-purpose tool for audio engineering and recording. Two independent circuits featuring a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control are housed in one, convenient desk-top chassis. Used as a mic/line preamp or as a DI (direct) box, the Tube MP/C is designed to work seamlessly with any recording, sound-reinforcement, or electronic instrument setup. A R T's Tube MP/C circuitry is a hybrid design utilizing the latest, most advanced, solid-state and tube technology.

The preamplifier's active balanced solid-state input provides extremely low noise and excellent common mode rejection. The ┬╝-inch high impedance input prevents loading of any connected device making the Tube MP/C perfect for DI or line level applications. The preamplifier's second stage 12AX7a tube runs on a regulated DC voltage providing an additional 20dB of gain.

The compression circuit features a VCA-less design and utilizes optical electronics (Vactrol) coupled with a 12AX7a vacuum tube gain stage for superior musical performance.

Features:

  • Tube-based mic/line preamplifier with up to 80 dB of gain
  • Hand-selected 12AX7a tube
  • Optical (VCA-less) compressor circuitry = transparent dynamics control
  • ┬╝-inch unbalanced inputs and outputs
  • XLR balanced inputs and outputs
  • Transformer isolated XLR output
  • Selectable output range for Line/Instrument interface levels
  • LED meters for Tube Warmth, Gain Reduction and Output level
  • +48V phantom power
  • Phase reversal switch
  • Selectable release time settings
  • > 90dB dynamic range
  • Custom extruded aluminum chassis

Specifications:

  • CMMR: > 60 dB @ max gain
  • Equivalent Input Noise: -128dBu typical ("A" wtd., Shorted XLR balancedinput, gain @ max)
  • Frequency Response: 30 Hz - 60 kHz +/- 1 dB balanced output, 20 Hz -60 kHz +/- 1dB 1/4" output
  • Input Impedance: 1M Ohms 1/4" input, 5K Ohms XLR input
  • Input/Output Connections:
      -  Input: XLR balanced or1/4" balanced
      -  Output: 1/4" unbalanced XLR balanced,transformer isolated.
  • Maximum Gain: +80 dB (balanced in-out, +64dB (unbalanced input,balanced output)
  • Maximum Input Level:
      -  unbalanced (Inst): +15dBu
      -  balanced (mic): +10 dBu
  • Maximum Output Level: +19 dBu (Line mode)
  • Output Impedance:
      -  XLR: <600 Ohms
     -  1/4": <300 Ohms
  • Low Cut Filter: -3 dB @ 70 Hz, 6dB/Octave
  • Phantom Power: Switch selectable, +48Volts DC, filtered, currentlimited
  • Chassis Type: All aluminum black anodized with integral rubber sides
  • Power Requirements: 9VAC @ 1000mA (external)
  • Attack Time: <1 ms (limit), 20 ms (comp.)
  • Release Time: 150ms (fast), 20ms - 3s Program dependant (Auto)
  • Total Harmonic Distortion: <0.1% @ max gain
  • Tube Type: Hand selected 12AX7a
  • Compressor Slope: 2:1 (Comp.) / 11:1 (Limit)
  • Dimensions: 1.75"H x 5.9" W x 6.5" D (44.5mm x 150mm x 165mm)
  • Weight: 2.9 lbs (1.32 kg) [includes power supply and packaging]
