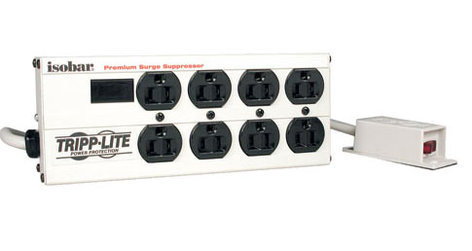

Tripp Lite IBAR8-15RM
Surge Suppressor, 8 out, 12" Cord

OUR PART #  IBAR8-15RM

Our Price: $89.25
List Price: $112.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. IB8RM offers 8 outlets arranged in four filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3840 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Unique mountable remote switch at the end of a 9 foot cord allows convenient power switching of desktop computers and peripherals without reaching under desks or workbenches. 12 foot AC line cord with space-saving angled input plug and keyhole mounting tabs.

Ideal for premium protection and convenient power off/on control of personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial application.

Features:

  • 8 outlets / 12-ft. cord
  • 3840 joule rating
  • Remote on/off switch on a 9-ft. cord
  • All metal housing
  • Isolated filter banks
  • $50,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
  • Tripp Lite's ISOBAR is the world's #1 selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+ years
  • Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts
  • Multi-component suppression circuits combine toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
  • 8 outlets arranged in four filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on
  • Network grade surge suppression rated at 3840 joules/97,000 amps
  • Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
  • Lighted power switch with integrated 12 amp circuit breaker offers power control and overload protection
  • 12 foot AC line cord with space-saving angled input plug
  • Keyhole mounting tabs allow permanent installation
  • 120V AC, 50/60Hz electrical compatibility
  • Lifetime product warranty

Specifications:

Intended Application  Home/Office, Computer Networks

OUTPUT

  • Frequency compatibility  50 / 60 Hz
  • Output watts  1440
  • Circuit Breaker (amps)  12
  • Outlet quantity / type  8 NEMA 5-15R
  • Transformer accommodation  Supports up to 4 large transformer plug accessories without covering remaining outlets

INPUT

  • Recommended Electrical Service  120V (110-125V)
  • Input connection type  NEMA 5-15P input plug
  • Input plug features  Space-saving right angle input plug
  • Input cord length (ft.)  12
  • Input cord length (m)  3.7
  • Voltage compatibility (VAC)  120
  • Maximum Surge Amps  150000

LEDS ALARMS & SWITCHES

  • Switches  Combination AC circuit breaker and mountable two position illuminated on/off power switch at the end of a 9 foot cable

SURGE / NOISE SUPPRESSION

  • AC suppression joule rating  3840
  • AC suppression response time  NM = 0 ns. CM = <1 ns
  • Protection modes  Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping voltage (RMS)  140V
  • AC suppression surge current rating  97,000 amps (36,000 NM / 61,000 CM)
  • AC suppression components used  Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
  • Safe thermal fusing  Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
  • UL1449 let through rating  330V
  • IEEE587 Cat. A ringwave let through  Less than 35 volts
  • EMI / RFI filtering  40-80 dB
  • Isolated filter banks  Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 4 filter banks.
  • Immunity  Conforms to IEE 587 / ANSI C62.41

DATALINE SURGE SUPPRESSION

  • Telephone/DSL Protection  No
  • Cable (Coax) Protection  No
  • Network (Ethernet) Protection  No

PHYSICAL

  • Unit Dimensions (HWD/in)  2.5 x 9 x 3.5
  • Unit Dimensions (HWD/cm)  6.4 x 22.9 x 8.9
  • Material of construction  Metal
  • Integrated keyhole mounting tabs  Metal end caps and remote power switch are fitted with keyhole mounting tabs for desk or wallmount installation
  • Receptacle Color  Black
  • AC line cord color  Gray
  • Style  Strip
  • Outlets center to center measurement  Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 38.66mm
  • Keyhole slot center to center measurement  Distance between horizontal tabs = 210.79mm; Distance between vertical tabs = 58.17mm

SPECIAL FEATURES

  • Appearance  Rugged all-metal corded strip format with high quality duplex receptacles
  • Right-Angle Plug  Yes

CERTIFICATIONS

  • UL1449 3rd Edition (AC Suppression)  Tested to UL1449 3rd Edition by ETL
  • cUL / CSA (Canada)  Approved for Canada by ETL
  • Approvals  Exceeds IEEE 587 category A&B specifications

Tripp Lite IBAR8-15RM
Surge Suppressor, 8 out, 12" Cord

OUR PART #  IBAR8-15RM

Product Information:

Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. IB8RM offers 8 outlets arranged in four filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3840 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Unique mountable remote switch at the end of a 9 foot cord allows convenient power switching of desktop computers and peripherals without reaching under desks or workbenches. 12 foot AC line cord with space-saving angled input plug and keyhole mounting tabs.

Ideal for premium protection and convenient power off/on control of personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial application.

Features:

  • 8 outlets / 12-ft. cord
  • 3840 joule rating
  • Remote on/off switch on a 9-ft. cord
  • All metal housing
  • Isolated filter banks
  • $50,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
  • Tripp Lite's ISOBAR is the world's #1 selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+ years
  • Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts
  • Multi-component suppression circuits combine toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
  • 8 outlets arranged in four filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on
  • Network grade surge suppression rated at 3840 joules/97,000 amps
  • Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
  • Lighted power switch with integrated 12 amp circuit breaker offers power control and overload protection
  • 12 foot AC line cord with space-saving angled input plug
  • Keyhole mounting tabs allow permanent installation
  • 120V AC, 50/60Hz electrical compatibility
  • Lifetime product warranty

Specifications:

Intended Application  Home/Office, Computer Networks

OUTPUT

  • Frequency compatibility  50 / 60 Hz
  • Output watts  1440
  • Circuit Breaker (amps)  12
  • Outlet quantity / type  8 NEMA 5-15R
  • Transformer accommodation  Supports up to 4 large transformer plug accessories without covering remaining outlets

INPUT

  • Recommended Electrical Service  120V (110-125V)
  • Input connection type  NEMA 5-15P input plug
  • Input plug features  Space-saving right angle input plug
  • Input cord length (ft.)  12
  • Input cord length (m)  3.7
  • Voltage compatibility (VAC)  120
  • Maximum Surge Amps  150000

LEDS ALARMS & SWITCHES

  • Switches  Combination AC circuit breaker and mountable two position illuminated on/off power switch at the end of a 9 foot cable

SURGE / NOISE SUPPRESSION

  • AC suppression joule rating  3840
  • AC suppression response time  NM = 0 ns. CM = <1 ns
  • Protection modes  Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping voltage (RMS)  140V
  • AC suppression surge current rating  97,000 amps (36,000 NM / 61,000 CM)
  • AC suppression components used  Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
  • Safe thermal fusing  Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
  • UL1449 let through rating  330V
  • IEEE587 Cat. A ringwave let through  Less than 35 volts
  • EMI / RFI filtering  40-80 dB
  • Isolated filter banks  Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 4 filter banks.
  • Immunity  Conforms to IEE 587 / ANSI C62.41

DATALINE SURGE SUPPRESSION

  • Telephone/DSL Protection  No
  • Cable (Coax) Protection  No
  • Network (Ethernet) Protection  No

PHYSICAL

  • Unit Dimensions (HWD/in)  2.5 x 9 x 3.5
  • Unit Dimensions (HWD/cm)  6.4 x 22.9 x 8.9
  • Material of construction  Metal
  • Integrated keyhole mounting tabs  Metal end caps and remote power switch are fitted with keyhole mounting tabs for desk or wallmount installation
  • Receptacle Color  Black
  • AC line cord color  Gray
  • Style  Strip
  • Outlets center to center measurement  Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 38.66mm
  • Keyhole slot center to center measurement  Distance between horizontal tabs = 210.79mm; Distance between vertical tabs = 58.17mm

SPECIAL FEATURES

  • Appearance  Rugged all-metal corded strip format with high quality duplex receptacles
  • Right-Angle Plug  Yes

CERTIFICATIONS

  • UL1449 3rd Edition (AC Suppression)  Tested to UL1449 3rd Edition by ETL
  • cUL / CSA (Canada)  Approved for Canada by ETL
  • Approvals  Exceeds IEEE 587 category A&B specifications
