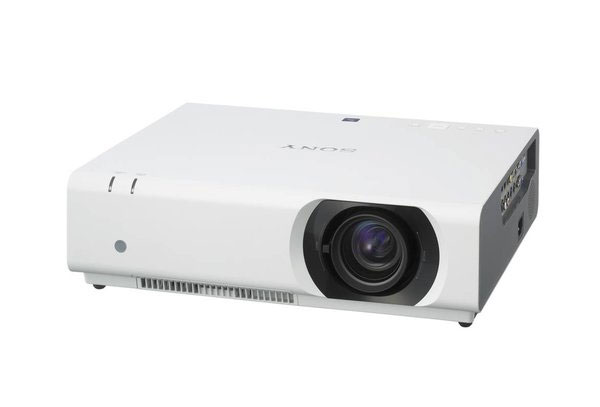

Sony VPLCX235
XGA Projector, 4100 Lumens

OUR PART #  VPLCX235

Our Price: $1,382.65
List Price: $2,150.00
Call for Special Sale Price!
In Stock

Sony's VPL-CX235 offers great XGA 4:3 resolution and environmentally-friendly features for a low total cost of ownership. The VPL-CX235 incorporates Sony’sBrightEra™ 3LCD inorganic panel technology that delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent color stability and longer durability and usability. Maximum 4,100 lumens brightness The VPL-CX235 features three brightness modes to suit individual user’s needs – 4,100, 3,100 and 2,200 lumens.The low brightness mode generates lower operating costs by reducing power consumption and extending the lamp lifetime to approximately 5,000 hours. The projector also has a contrast ratio of 3100:1, a range of video inputs, including HDMI, and RJ45 or RS-232C connectors for control.

Features:

  • Maximum 4,100 lumens brightness with High, Standard and Low modes  The VPL-CX235 features three brightness modes for different uses – High 4,100 lumens for naturally white presentations in bright rooms, Standard 3,100 lumens for everyday use, and Low 2,200 lumens for video in darkened rooms.
  • 1.66 ~ 2.41:1 throw ratio  The VPL-CX235 offers a 1.66 ~ 2.41:1 throw ratio that can accommodate most large classrooms or large meeting rooms.
  • 3LCD BrightEraâ„¢ technology  Sony's 0.63-inch BrightEraâ„¢ inorganic TFT 3 LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability
  • XGA 4:3 resolution  The VPL-CX235 has a native XGA (1024 x 768) 4:3 screen resolution panel that is perfect for presentations direct from video, laptop or PC.
  • 5,000 hours expected lamp life  Extended lamp life is possible with a new driving scheme that reduces gap expansion and brightness gradation, plus a new cooling system that allows uniformity in the temperature of the glass bulb and prevents it from clouding
  • Eco Mode  Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push, and further adjustments are available through an easily understood menu system.
  • Lamp Dimming  With Lamp Dimming, the projector can reduce power consumption and brightness by 10-15% without user detection. After a pre-set time assigned by the user, the brightness and power consumption will reduce to 30% power usage. Instant 100% brightness returns with a new signal input to the projector.
  • Picture Mute  Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours. This feature can be used in the education market as an instant off / on between class changes, or in the corporate market as a tool to redirect attention away from the screen and reduce power.
  • Vertical and horizontal keystone adjustment  The projector can correct keystone distortion by V: +/- 30% H: +/- 20% for perfect installation adjustment.(Note: Since this is an electronic correction, it will reduce the picture quality slightly).
  • Smart APA (Auto Pixel Alignment)  When a computer is used as a picture source, APA automatically optimises Phase, Pitch and Shift values. These can also be adjusted manually.
  • Auto Input Search  Auto Input Search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.
  • Audio switcher facility  To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.
  • Picture Freeze function  Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector
  • Digital Zoom  With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image.
  • Off and Go  At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a ‘power down’ cycle.
  • Direct Power On/Off  With this function, there is no need to go through Standby mode when powering up the projector. The projector can be set to activate as soon as power is applied.
  • Superb picture quality  Advanced Crisp Focus Lens which is built from 10 glass lens elements and one aspheric plastic lens, provides high-resolution crisp images with less aberration across the image. 12-bit 3D Digital Gamma Correction circuity performs highly accurate gamma correction which results in fine-detailed color gradation.
  • Easier installation  The VPL-CX235 is equipped with 1.5x optical zoom and V: +/-5% H:+/-4% lens shift. Combined with advanced geometric correction function, vertical and horizontal key stone correction easily allow users to fit an image squarely on to a screen, even from an offset projection angle which will lead to reduced total cost of installation.
  • Advacned Geometric Correction  Each corners of projected image can be grabbed and fitted squarely to the desired position. This feature is useful when an offset projection is necessary.
  • Audio Switcher Funciton  To avoid the need for a separate audioswitcher, the projector can be used to select between four audio sourcesincluding HDMI, routing them via a variable audio output to the roomamplification system.

Specifications:

Optical Specifications

  • Projection System  3 LCD system
  • Image Device  Size of effective display area BrightEra, Aspect ratio: 4:3 Number of pixels 2,359,296 (1024 x 768 x 3) pixels
  • Color Light Output  4100 lm / 3100 lm / 2200 lm
  • Color Light Output (low lamp mode)  4100 lm / 3100 lm / 2200 lm
  • Light Output  High-pressure mercury lamp 245 W type
  • Contrast Ratio  3100:1
  • Lamp Life  3000 H / 4000 H / 5000 H (Lamp mode: High / Standard / Low)
  • Projection Lens  Zoom x1.5 Focus Manual Lens Shift Manual V: +/- 5% H: +/- 4%
  • Throw Ratio  1.66 - 2.41:1
  • Input/Output Specifications  Detail:
  • S-Video In  Mini DIN 4-pin, Audio : RCA (x2) (shared with VIDEO IN)
  • Composite Video In  RCA, Audio : RCA (x2) (shared with S VIDEO IN)
  • Analog RGB/Component In  Mini D-sub 15-pin (RGB/Y Pb Pr) x1, Mini D-sub 15-pin (RGB) x1, Audio: Stereo mini jack x2
  • Digital In  HDMI (HDCP support)
  • Network  RJ-45, 10BASE-T/100BASE-TX
  • Monitor Out  Mini D-sub 15-pin (from RGB input)
  • Variable Audio Out  Stereo mini jack
  • Remote Control  RS-232C: D-sub 9 pin (female)
  • Electrical Specifications  Detail:
  • Color System  Auto / NTSC3.58,
  • 720 TV Lines
  • Acceptable Computer Signals  Maximum input signal resolution: UXGA 1600 x 1200*3 (resizing display), Panel display resolution: 1024 x 768 pixels
  • *3 Available for VESA reduced blanking signal.
  • Acceptable Video Signals  NTSC3.58, PAL, SECAM, 480/60i, 576/50i,480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

General Specifications

  • Dimensions (W x H x D)  W 15 31/32 x H 4 13/16 x D 13 in
  • Weight  12lb 2oz
  • Power Requirements  AC 100 V to 240 V, 1.4A to 3.6 A 50 Hz /60 Hz
  • Power Consumption  Power consumption (AC 100 V to 120 V) 340 W / 280W / 240W (Lamp mode: High / Standard / Low) Power consumption (AC 220 V to 240 V) 320 W / 265W / 225W (Lamp mode: High / Standard / Low)
  • Operating Temperature  32F to 104F
  • Operating Humidity  35% to 85% (no condensation)
  • Heat Dissipation  Heat dissipation (AC 100 V to 120 V) 1,195 BTU Heat dissipation (AC 220 V to 240 V) 1,126 BTU
  • Storage Temperature  -4F to 140F
  • Storage Humidity  10% to 90%

Click to download

Sony VPLCX235
XGA Projector, 4100 Lumens

OUR PART #  VPLCX235

Product Information:

Sony's VPL-CX235 offers great XGA 4:3 resolution and environmentally-friendly features for a low total cost of ownership. The VPL-CX235 incorporates Sony’sBrightEra™ 3LCD inorganic panel technology that delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent color stability and longer durability and usability. Maximum 4,100 lumens brightness The VPL-CX235 features three brightness modes to suit individual user’s needs – 4,100, 3,100 and 2,200 lumens.The low brightness mode generates lower operating costs by reducing power consumption and extending the lamp lifetime to approximately 5,000 hours. The projector also has a contrast ratio of 3100:1, a range of video inputs, including HDMI, and RJ45 or RS-232C connectors for control.

Features:

  • Maximum 4,100 lumens brightness with High, Standard and Low modes  The VPL-CX235 features three brightness modes for different uses – High 4,100 lumens for naturally white presentations in bright rooms, Standard 3,100 lumens for everyday use, and Low 2,200 lumens for video in darkened rooms.
  • 1.66 ~ 2.41:1 throw ratio  The VPL-CX235 offers a 1.66 ~ 2.41:1 throw ratio that can accommodate most large classrooms or large meeting rooms.
  • 3LCD BrightEraâ„¢ technology  Sony's 0.63-inch BrightEraâ„¢ inorganic TFT 3 LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability
  • XGA 4:3 resolution  The VPL-CX235 has a native XGA (1024 x 768) 4:3 screen resolution panel that is perfect for presentations direct from video, laptop or PC.
  • 5,000 hours expected lamp life  Extended lamp life is possible with a new driving scheme that reduces gap expansion and brightness gradation, plus a new cooling system that allows uniformity in the temperature of the glass bulb and prevents it from clouding
  • Eco Mode  Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push, and further adjustments are available through an easily understood menu system.
  • Lamp Dimming  With Lamp Dimming, the projector can reduce power consumption and brightness by 10-15% without user detection. After a pre-set time assigned by the user, the brightness and power consumption will reduce to 30% power usage. Instant 100% brightness returns with a new signal input to the projector.
  • Picture Mute  Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours. This feature can be used in the education market as an instant off / on between class changes, or in the corporate market as a tool to redirect attention away from the screen and reduce power.
  • Vertical and horizontal keystone adjustment  The projector can correct keystone distortion by V: +/- 30% H: +/- 20% for perfect installation adjustment.(Note: Since this is an electronic correction, it will reduce the picture quality slightly).
  • Smart APA (Auto Pixel Alignment)  When a computer is used as a picture source, APA automatically optimises Phase, Pitch and Shift values. These can also be adjusted manually.
  • Auto Input Search  Auto Input Search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.
  • Audio switcher facility  To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.
  • Picture Freeze function  Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector
  • Digital Zoom  With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image.
  • Off and Go  At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a ‘power down’ cycle.
  • Direct Power On/Off  With this function, there is no need to go through Standby mode when powering up the projector. The projector can be set to activate as soon as power is applied.
  • Superb picture quality  Advanced Crisp Focus Lens which is built from 10 glass lens elements and one aspheric plastic lens, provides high-resolution crisp images with less aberration across the image. 12-bit 3D Digital Gamma Correction circuity performs highly accurate gamma correction which results in fine-detailed color gradation.
  • Easier installation  The VPL-CX235 is equipped with 1.5x optical zoom and V: +/-5% H:+/-4% lens shift. Combined with advanced geometric correction function, vertical and horizontal key stone correction easily allow users to fit an image squarely on to a screen, even from an offset projection angle which will lead to reduced total cost of installation.
  • Advacned Geometric Correction  Each corners of projected image can be grabbed and fitted squarely to the desired position. This feature is useful when an offset projection is necessary.
  • Audio Switcher Funciton  To avoid the need for a separate audioswitcher, the projector can be used to select between four audio sourcesincluding HDMI, routing them via a variable audio output to the roomamplification system.

Specifications:

Optical Specifications

  • Projection System  3 LCD system
  • Image Device  Size of effective display area BrightEra, Aspect ratio: 4:3 Number of pixels 2,359,296 (1024 x 768 x 3) pixels
  • Color Light Output  4100 lm / 3100 lm / 2200 lm
  • Color Light Output (low lamp mode)  4100 lm / 3100 lm / 2200 lm
  • Light Output  High-pressure mercury lamp 245 W type
  • Contrast Ratio  3100:1
  • Lamp Life  3000 H / 4000 H / 5000 H (Lamp mode: High / Standard / Low)
  • Projection Lens  Zoom x1.5 Focus Manual Lens Shift Manual V: +/- 5% H: +/- 4%
  • Throw Ratio  1.66 - 2.41:1
  • Input/Output Specifications  Detail:
  • S-Video In  Mini DIN 4-pin, Audio : RCA (x2) (shared with VIDEO IN)
  • Composite Video In  RCA, Audio : RCA (x2) (shared with S VIDEO IN)
  • Analog RGB/Component In  Mini D-sub 15-pin (RGB/Y Pb Pr) x1, Mini D-sub 15-pin (RGB) x1, Audio: Stereo mini jack x2
  • Digital In  HDMI (HDCP support)
  • Network  RJ-45, 10BASE-T/100BASE-TX
  • Monitor Out  Mini D-sub 15-pin (from RGB input)
  • Variable Audio Out  Stereo mini jack
  • Remote Control  RS-232C: D-sub 9 pin (female)
  • Electrical Specifications  Detail:
  • Color System  Auto / NTSC3.58,
  • 720 TV Lines
  • Acceptable Computer Signals  Maximum input signal resolution: UXGA 1600 x 1200*3 (resizing display), Panel display resolution: 1024 x 768 pixels
  • *3 Available for VESA reduced blanking signal.
  • Acceptable Video Signals  NTSC3.58, PAL, SECAM, 480/60i, 576/50i,480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

General Specifications

  • Dimensions (W x H x D)  W 15 31/32 x H 4 13/16 x D 13 in
  • Weight  12lb 2oz
  • Power Requirements  AC 100 V to 240 V, 1.4A to 3.6 A 50 Hz /60 Hz
  • Power Consumption  Power consumption (AC 100 V to 120 V) 340 W / 280W / 240W (Lamp mode: High / Standard / Low) Power consumption (AC 220 V to 240 V) 320 W / 265W / 225W (Lamp mode: High / Standard / Low)
  • Operating Temperature  32F to 104F
  • Operating Humidity  35% to 85% (no condensation)
  • Heat Dissipation  Heat dissipation (AC 100 V to 120 V) 1,195 BTU Heat dissipation (AC 220 V to 240 V) 1,126 BTU
  • Storage Temperature  -4F to 140F
  • Storage Humidity  10% to 90%

Click to download
