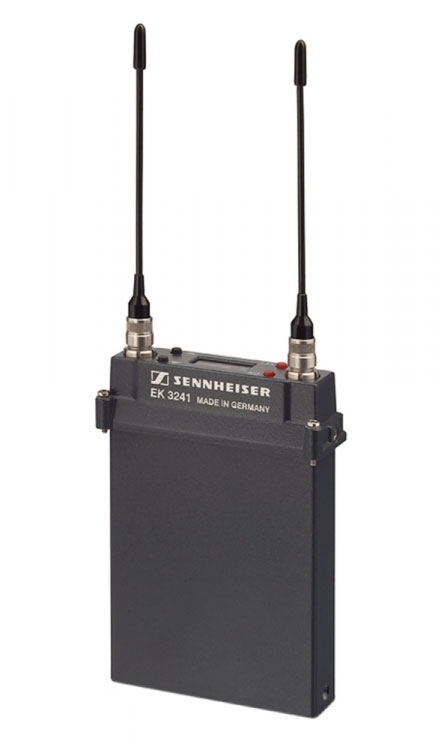

Sennheiser EK3241-A
Receiver Mini True ENG 500971

OUR PART #  EK3241-A

Our Price: $2,099.95
List Price: $2,629.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Miniature true diversity ENG receiver for use with QP3041 Quadpack or compatible Sony, Ikegami, Panasonic and Philips 'slot-in' style cameras, camera slot-in use requires mounting adapter, 450/626 MHz. Specify 36 MHz frequency range

The new EK 3241 has a switching bandwidth of 36 MHz and frequencies that can be tuned in steps of 5 kHz, making the true-diversity receiver the perfect partner for Sennheiser’s current transmitter models SKM 5200 and SK 5212.

Frequency-agile products are in greater demand than ever as frequency resources become increasingly scarce. We have therefore developed a new tuner module for this true-diversity camera receiver and given the lightweight EK 3241 (200 g) the capacity for reliable, flexible RF wireless transmission: 32 custom frequencies have already been programmed within the switching bandwidth of 36 MHz; in addition, the user is free to program and store another 20 frequencies in steps of 5 kHz into the user bank.

The receiver can be easily and intuitively operated with a completely new user interface, which is similar to that of the SK 5212 bodypack transmitter. For a high operational reliability the EK 3241 displays the battery status of the transmitter in detail. The receiver is extremely reliable; its full-metal case is weatherproof and robust.

Features:

  • True-diversity receiver in a very compact all-metal housing
  • 36 MHz switching bandwidth
  • Frequencies tunable in steps of 5 kHz
  • New menu for user-friendly operation
  • Special protection against the ingress of moisture
  • Power supply via camcorder or GA 3041-B battery adapter
  • High operational reliability due to true diversity reception
  • Detailed indication of the transmitter’s battery status
  • Command function can be activated in service
  • Operating time of 9 to 18 hrs (BA 50 / B 250)

Specifications:

  • Compander  Sennheiser HiDyn plus™
  • RF frequency range (USA)  470 - 608, 614-698, 944-952 MHz
  • RF frequency range (outside USA)  450 - 960 MHz
  • Impedance  2 sockets/50 O
  • Intermodulation attenuation  = 70 dB
  • Modulation  Wideband-FM
  • Nominal deviation  ± 40 kHz / ± 56 kHz
  • Number of channels  Tuneable in steps of 5 kHz
  • Sensitivity as per 121 TR 9-5  Typ. 10 µV for 90 dBAeff S/N
  • Signal-to-noise-ratio  = 100 dB(A)
  • Squelch  0 until 100 µV, adjustable in steps of 5 dB
  • Switching bandwidth  36 MHz
  • Total harmonic distortion (THD)  = 1 %, typ. 0.8 % per system

Sennheiser EK3241-A
Receiver Mini True ENG 500971

OUR PART #  EK3241-A

Product Information:

Miniature true diversity ENG receiver for use with QP3041 Quadpack or compatible Sony, Ikegami, Panasonic and Philips 'slot-in' style cameras, camera slot-in use requires mounting adapter, 450/626 MHz. Specify 36 MHz frequency range

The new EK 3241 has a switching bandwidth of 36 MHz and frequencies that can be tuned in steps of 5 kHz, making the true-diversity receiver the perfect partner for Sennheiser’s current transmitter models SKM 5200 and SK 5212.

Frequency-agile products are in greater demand than ever as frequency resources become increasingly scarce. We have therefore developed a new tuner module for this true-diversity camera receiver and given the lightweight EK 3241 (200 g) the capacity for reliable, flexible RF wireless transmission: 32 custom frequencies have already been programmed within the switching bandwidth of 36 MHz; in addition, the user is free to program and store another 20 frequencies in steps of 5 kHz into the user bank.

The receiver can be easily and intuitively operated with a completely new user interface, which is similar to that of the SK 5212 bodypack transmitter. For a high operational reliability the EK 3241 displays the battery status of the transmitter in detail. The receiver is extremely reliable; its full-metal case is weatherproof and robust.

Features:

  • True-diversity receiver in a very compact all-metal housing
  • 36 MHz switching bandwidth
  • Frequencies tunable in steps of 5 kHz
  • New menu for user-friendly operation
  • Special protection against the ingress of moisture
  • Power supply via camcorder or GA 3041-B battery adapter
  • High operational reliability due to true diversity reception
  • Detailed indication of the transmitter’s battery status
  • Command function can be activated in service
  • Operating time of 9 to 18 hrs (BA 50 / B 250)

Specifications:

  • Compander  Sennheiser HiDyn plus™
  • RF frequency range (USA)  470 - 608, 614-698, 944-952 MHz
  • RF frequency range (outside USA)  450 - 960 MHz
  • Impedance  2 sockets/50 O
  • Intermodulation attenuation  = 70 dB
  • Modulation  Wideband-FM
  • Nominal deviation  ± 40 kHz / ± 56 kHz
  • Number of channels  Tuneable in steps of 5 kHz
  • Sensitivity as per 121 TR 9-5  Typ. 10 µV for 90 dBAeff S/N
  • Signal-to-noise-ratio  = 100 dB(A)
  • Squelch  0 until 100 µV, adjustable in steps of 5 dB
  • Switching bandwidth  36 MHz
  • Total harmonic distortion (THD)  = 1 %, typ. 0.8 % per system
