Magma ExpressBox 3T
3-Slot Thunderbolt to PCI Express Expansion Chassis

OUR PART #:  EB3T

Our Price: $949.05
List Price: $999.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Magma ExpressBox 3T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

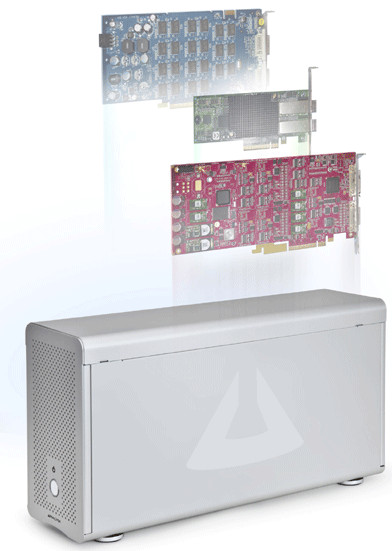

Magma's ExpressBox 3T provides an "outside-the-box" solution for using PCIe® cards with Thunderbolt-equipped computers such as Apple's latest versions of the Mac Pro and Mac Book Pro.  High-performance work flows are possible by connecting a Thunderbolt-equipped computer to a Thunderbolt expansion chasis containing PCIe cards such as video capture, media transcoding, audio processing, and fast data storage.  And because Thunderbolt is also based on DisplayPort technology, you can daisy chain a high-resolution display with your Magma ExpressBox 3T.

Magma EB3T Includes:

  • Blower (if needed for cooling)
  • Carry bag
  • U.S. power cord

Magma EB3T Features:

  • Works with Thunderbolt-equipped computers like Apple's Mac Pro and Mac Book Pro
  • Supports (3) full-length PCI Express cards ExpressBox 3T
  • Use a variety x1, x4, x8 and x16 PCIe cards
  • Two x8 and One x4 (one of the x8 slots accommodates a x16 Card)
  • Thunderbolt features speeds up to 10Gbps
  • Daisy-chain up to 6 Thunderbolt devices
  • 250W power supply with (2) auxiliary power connectors
  • Hot-swappable cooling fan
  • Works with Mac OS X 10.6.8 or higher
  • Additional blower for extra-hot cards
  • Optional built-in drivebay for up to four (4) 2.5" SSD or drives

Magma EB3T Specifications:

  • Backplane: (3) Full Length PCI Express Slots*
    • two x8 PCIe 2.0
    • one x4 PCIe 2.0
    • One slot accommodates x16
  • Cable Required: Thunderbolt (Sold Separately)
  • Interconnect Bandwidth: 10 Gbps Bi-directional
  • Hard Drive Support: Optional built-in drivebay for up to four (4)2.5" SSD or SAS/SATA drives*
  • Enclosure Material: Aluminum Chassis
  • Dimensions (LxWxH): 14.6" x 4.3" x 7.9" (371 x 110x 200 mm)
  • System Cooling: 1x Hot-Swappable Fan, 1x Removable Blower Fan
  • Power Supply:
    • 250W, 100-240 VAC, 50-60HZ
    • Two 4-pin auxiliary power tabs
  • Ambient Temperature: 0º to 50º C
  • Storage Temperature: -20º to 60º C
  • Relative Humidity: 5% to 85% non-condensing
  • Regulatory Compliance: FCC Class AVerified, RoHS Compliant
  • Supported Operating Systems: Mac OS X 10.6.8 or higher
  • Warranty: 30 day money back guarantee, 1 year return to factory
  • Partner Approvals:
    • Avid
    • Universal Audio
    • Lynx Studio
    • Apogee

NOTE: For a complete list of PCIe cards that are compatible with the ExpressBox 3T, please visit http://www.magma.com/thunderbolt-compatibility.
