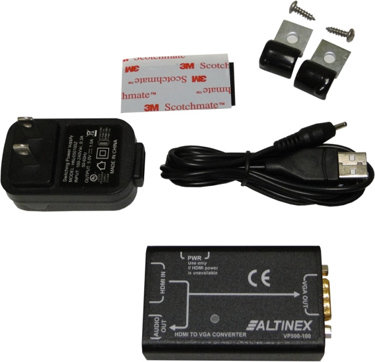

Altinex VP500-100
HDMI to VGA Converter

OUR PART #:  VP500-100

The VP500-100 works both with HDCP and non-HDCP sources. When source is non-HDCP (which are typically PC or Laptop) the VP500-100 converts signal at full resolution.
Learn More
Our Price: $306.44
List Price: $342.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Altinex VP500-100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VP500-100 works both with HDCP and non-HDCP sources. When source is non-HDCP (which are typically PC or Laptop) the VP500-100 converts signal at full resolution. When Source is HDCP (which are typically Blu ray disk or HD programming) then VP500-100 reduces the number of colors and resolution of the output signal. Altinex is both HDMI and HDCP adaptor and complies with all appropriate regulations.

The VP500-100 is an HDMI to VGA converter is compliant with HDMI 1.1/1.2 standards using embedded keys. The VP500-100 works with both HDCP and non-HDCP sources including: HD-DVD, Blu-ray, Playstation 3, etc. The VGA output connector is a standard 15-pin HD M that connects directly to the input of the VGA display. The video output supports all resolutions up to 1920x1080/60Hz. In addition to the HDMI to VGA video conversion, the VP500-100 also detects, strips, and outputs the audio from the HDMI signal in both analog and digital/optical audio formats.

The VP500-100 is small and lightweight; it can easily be installed behind a display or connected directly to the display input. In most cases, the converter receives its power directly from the HDMI source over the HDMI cable. In the event the source does not supply power, or supplies insufficient power, a +5 VDC power adapter is provided. The adapter is very small with slim-profile protruding less than 1 inch from the wall outlet.

Specifications:

General

  • Input: HDMI (female)
  • Output:
      -  VGA 15-pin (Male)
      -  Main Video: 5 BNC female
  • Power: VDC In: power jack (5V)
  • Compatibility:
      -  HDMI 1.1/1.2, HDCP 1.1, and DVI-D 1.0
      -  Video Resolutions HDTV: 480i through 1080p
      -  VGA Resolutions: up to 1920x1080/60Hz
  • Audio: Digital: S/PDIF

Electrical

  • Input Video:
      -   Signal: HDMI 700mv differential
      -  Impedance: 50Ohms
  • Output Video:
      -  RGB: .7v p-p
      -  Sync: H&V: TTL (+/-)
  • Output Audio:
      -  Analog: 1v p-p
      -  Digital: S/PDIF fiber
      -  Output Video: Gain: +/- 0.5dB
  • Power Consumption: External Power Adapter: 5V 400mA (2W max)

Mechanical

  • Dimensions (H x W x D):
      -  0.8" x 2.8" x 1.7"
      -  21 x 71 x 44mm
  • Weight:
      -  0.2lb
      -  0.1kg
