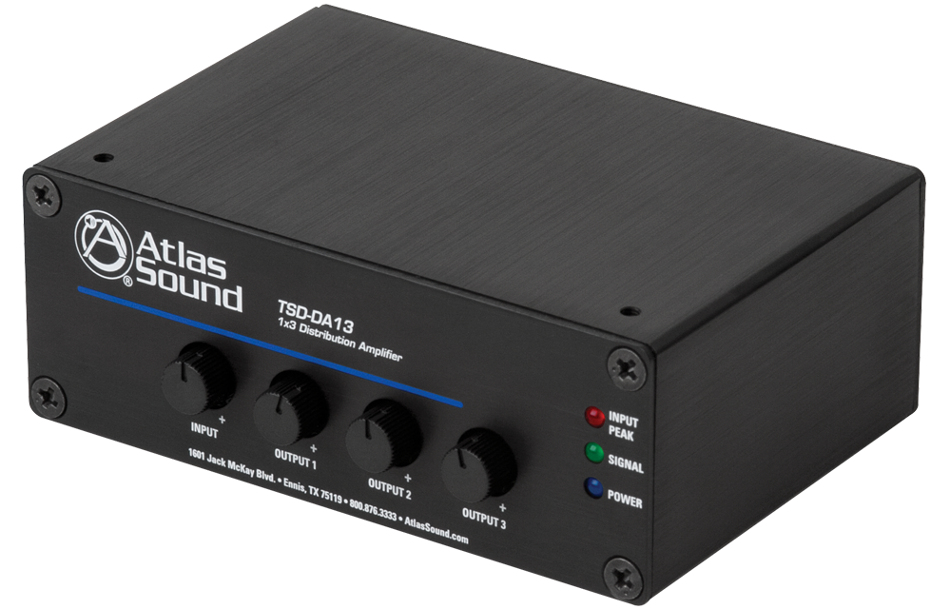

Atlas Sound TSD-DA13
1x3 Audio Distribution Amplifier


The Atlas Sound TSD-DA13 1x3 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations.
Learn More
Our Price: $168.99
List Price: $210.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Atlas Sound TSD-DA13
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound TSD-DA13 1x3 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows a balanced mic or line level source to be distributed to three isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities.

A high quality, low noise mic pre-amp, defeatable 3dB low cut filter @ 125Hz and dual summing RCA line level inputs are included as part of the unit's input section. These features combined with the 3 mic / line level outputs allow for multiple configurations.

Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device.  All I/O (except the summing RCA inputs) is via Phoenix style connectors for installation convenience.

NOTE:  Power supply for the TSD-DA13 is NOT included and must be purchased separately. Click here or contact your Sales Representative for more information on which power supply is correct for your installation.

Atlas Sound TSD-DA13 Features:

  • One (1) Balanced Mic/Line Input with Switchable 24V Phantom Power
  • High Gain (50dB), Low Noise Mic Preamp
  • Summed Dual RCA Input
  • Three (3) Isolated Balanced Mic/Line Outputs
  • 12dB/Octave Low Cut Filter @ 125Hz
  • Signal/Peak Indicator LED's
  • High Gain Output for Driving Long Balanced Lines
  • Removable Phoenix Style I/O Connectors
  • Separate Ground Connections
  • Energy Efficient

Atlas Sound TSD-DA13 Specifications:

  • Frequency Response:  20 Hz - 20 kHz
  • Input impedance:  1.2 kOHms Balanced, 600 Ohms Unbalanced
  • Input Low Cut Filter:  125Hz/12dB Defeatable
  • Output Impedance:  300 Ohms Balanced, 150 Ohms Unbalanced
  • THD:  0.06% @ 1kHz
  • Signal to Noise Ratio:  90dB
  • 24VDC Power Requirements:  60mA
  • Dimensions:
    • Height:  1.5" (3.81 cm)
    • Width:  4" (10.16 cm)
    • Depth:  2.5" (6.35 cm)
  • Weight:  6 oz. (0.165 kg)
